VBsemi ElecDatasheet (PDF)

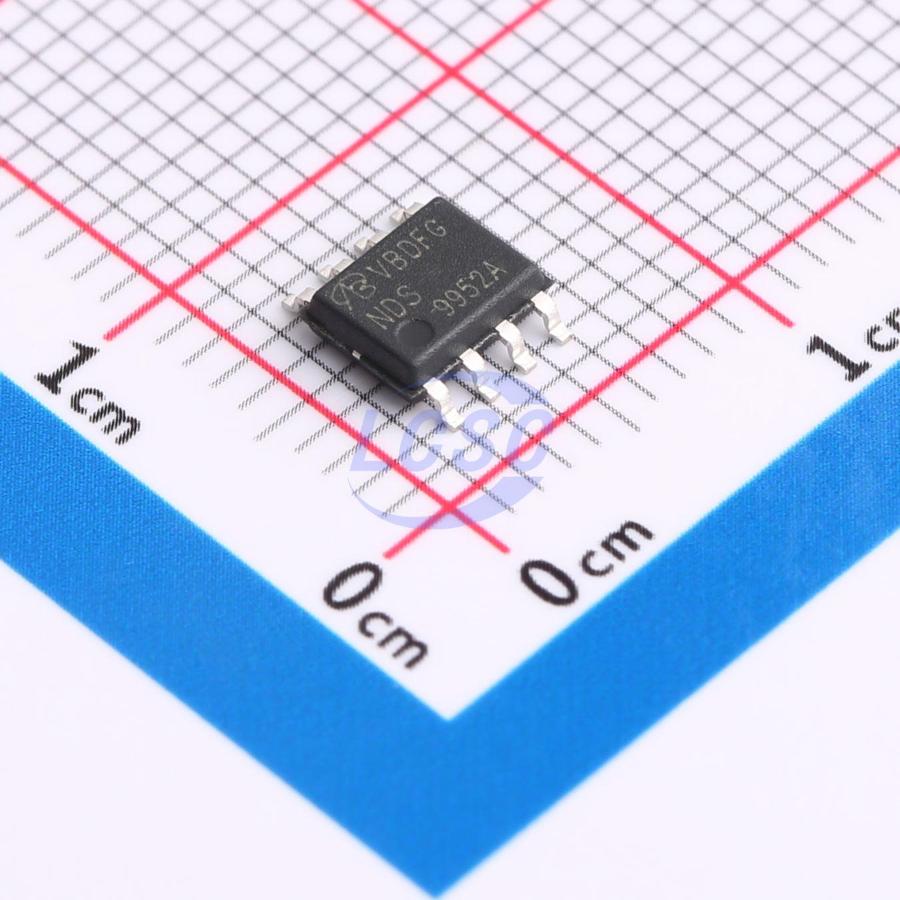

NDS9952A-NL-VB
30V 6.8A 2W 1 N-Channel + 1 P-Channel N-Channel + P-Channel SO-8 Single FETs, MOSFETs
SO-8RoHSActive
MOSFET N/P-CH 30V 6.8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NDS9952A-NL-VB
- Store part #
- C5456580
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C5456580
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.95 | ₹53.95 |
| 10+ | ₹42.77 | ₹427.70 |
| 30+ | ₹38.05 | ₹1,141.50 |
| 100+ | ₹32.03 | ₹3,203.00 |
| 500+ | ₹29.45 | ₹14,725.00 |
| 1,000+ | ₹27.73 | ₹27,730.00 |
1 × ₹53.95
₹53.95
excl. GST
₹63.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDS9952A-NL-VB
₹53.95 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 95pF;115pF
- Current - Continuous Drain(Id)
- 6.8A
- Ciss-Input Capacitance
- 510pF;620pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 33pF;37pF
- RDS(on)
- 18mΩ@10V;40mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6.2nC@10V;18.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.147 g
Overview
Applications
- Motor Drive - Power Bank
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
