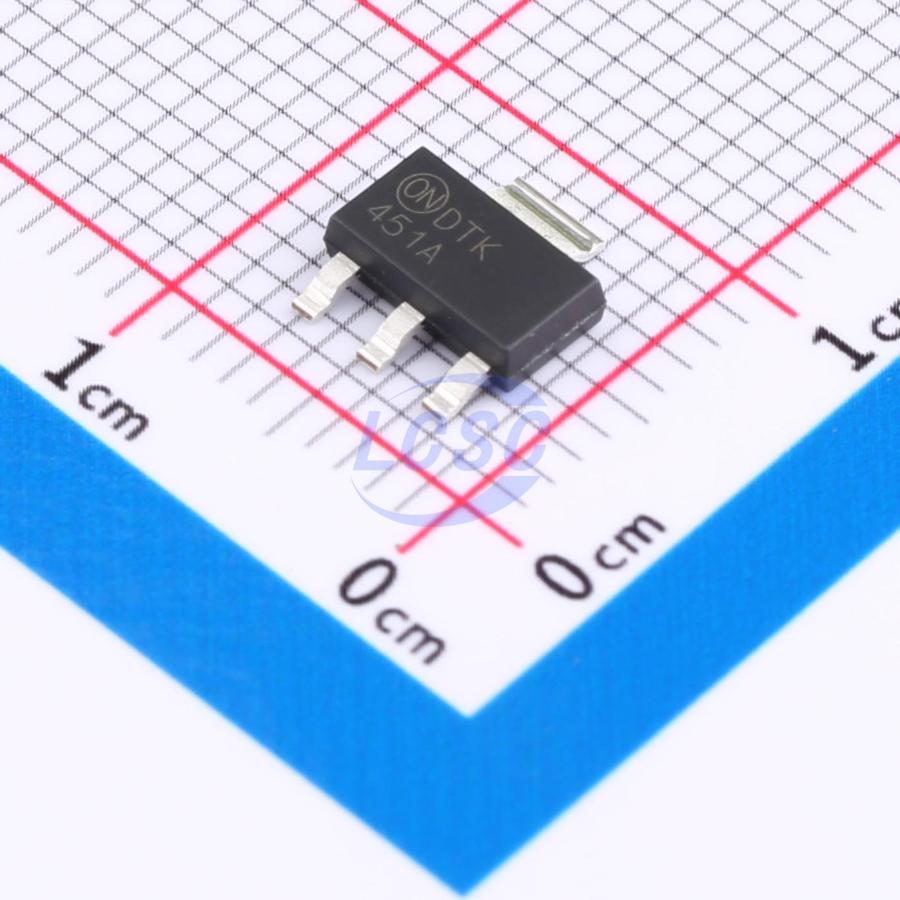

NDT451AN
N-Channel 30V 7.2A 3W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 30V 7.2A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- NDT451AN
- Store part #
- C3280052
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94 in stock
#C3280052
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.06 | ₹207.06 |
| 10+ | ₹169.99 | ₹1,699.90 |
| 30+ | ₹149.60 | ₹4,488.00 |
| 100+ | ₹126.41 | ₹12,641.00 |
| 500+ | ₹116.23 | ₹58,115.00 |
| 1,000+ | ₹111.66 | ₹1,11,660.00 |
1 × ₹207.06
₹207.06
excl. GST
₹244.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDT451AN
₹207.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 370pF
- Ciss-Input Capacitance
- 720pF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 7.2A
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 50mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.216 g
Overview
Power SOT N-Channel enhancement mode power field effect transistors are produced using proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particularly suited for low voltage applications such as DC motor control and DC/DC conversion where fast switching, low in-line power loss, and resistance to transients are needed.
Applications
- DC motor control
- DC/DC conversion
Key features
- 7.2A, 30V. RDS(ON)=0.035Ω @ VGS=10V; RDS(ON)=0.05Ω @ VGS=4.5V
- High density cell design for extremely low RDS(ON)
- High power and current handling capability in a widely used surface mount package
