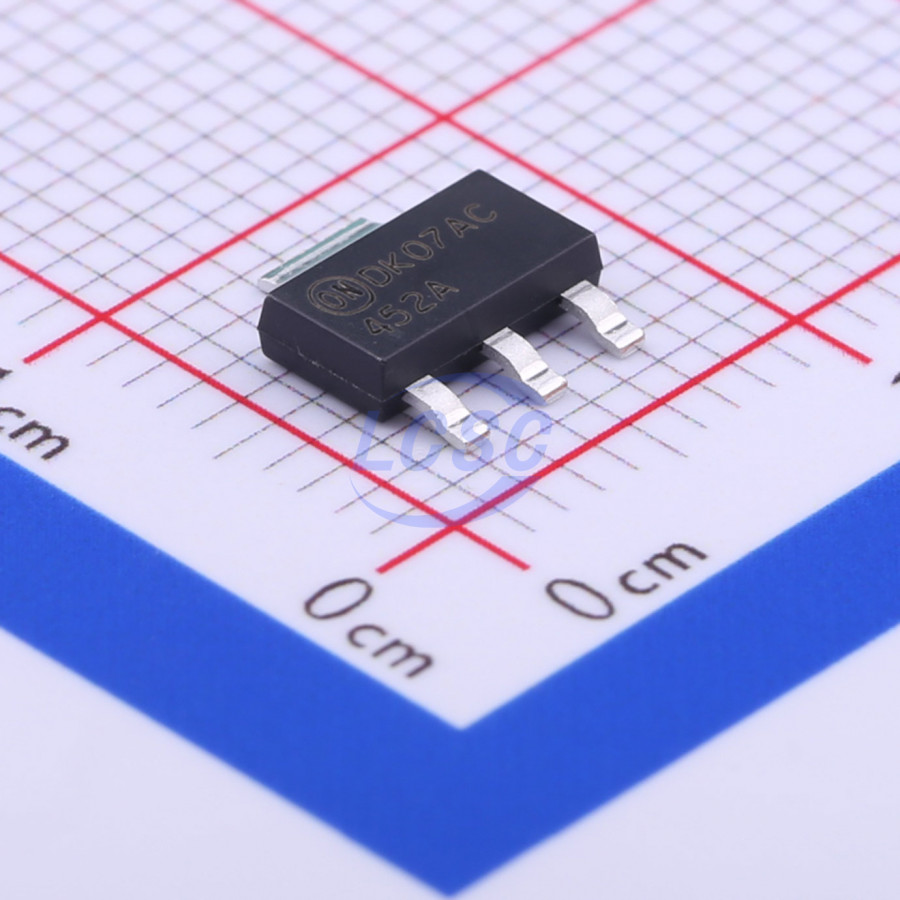

NDT452AP
P-Channel 30V 5A 3W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET P-CH 30V 5A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- NDT452AP
- Store part #
- C274614
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C274614
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.96 | ₹136.96 |
| 10+ | ₹113.18 | ₹1,131.80 |
| 30+ | ₹100.10 | ₹3,003.00 |
| 100+ | ₹85.27 | ₹8,527.00 |
| 500+ | ₹78.73 | ₹39,365.00 |
| 1,000+ | ₹75.68 | ₹75,680.00 |
1 × ₹136.96
₹136.96
excl. GST
₹161.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDT452AP
₹136.96 for 1 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 690pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 100mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 30nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.8V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.228 g
Overview
Power SOT P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particularly suited for low voltage applications such as notebook computer power management and DC motor control.
Applications
- notebook computer power management
- DC motor control
Key features
- -5A, -30V. RDS(ON)=0.065Ω @ VGS=-10V, RDS(ON)=0.1Ω @ VGS=-4.5V.
- High density cell design for extremely low RDS(ON).
- High power and current handling capability in a widely used surface mount package.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSL3103#C7543690HUASHUO · SOT-223 | HUASHUO | SOT-223 | 365 | ₹29.08 · 365 in stock | View |
 | NDT452AP(UMW)#C19100578UMW · SOT-223 | UMW | SOT-223 | 5,915 | ₹14.83 · 5,915 in stock | View |
 | UT9435HG-AA3-R#C171441UTC · SOT-223 | UTC | SOT-223 | 215 | ₹22.62 · 215 in stock | View |
 | HT03P250S#C49066899R+O · SOT-223 | R+O | SOT-223 | 7,700 | ₹35.14 · 7,700 in stock | View |
 | MCT06P10-TP#C48937501JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 875 | ₹43.20 · 875 in stock | View |
