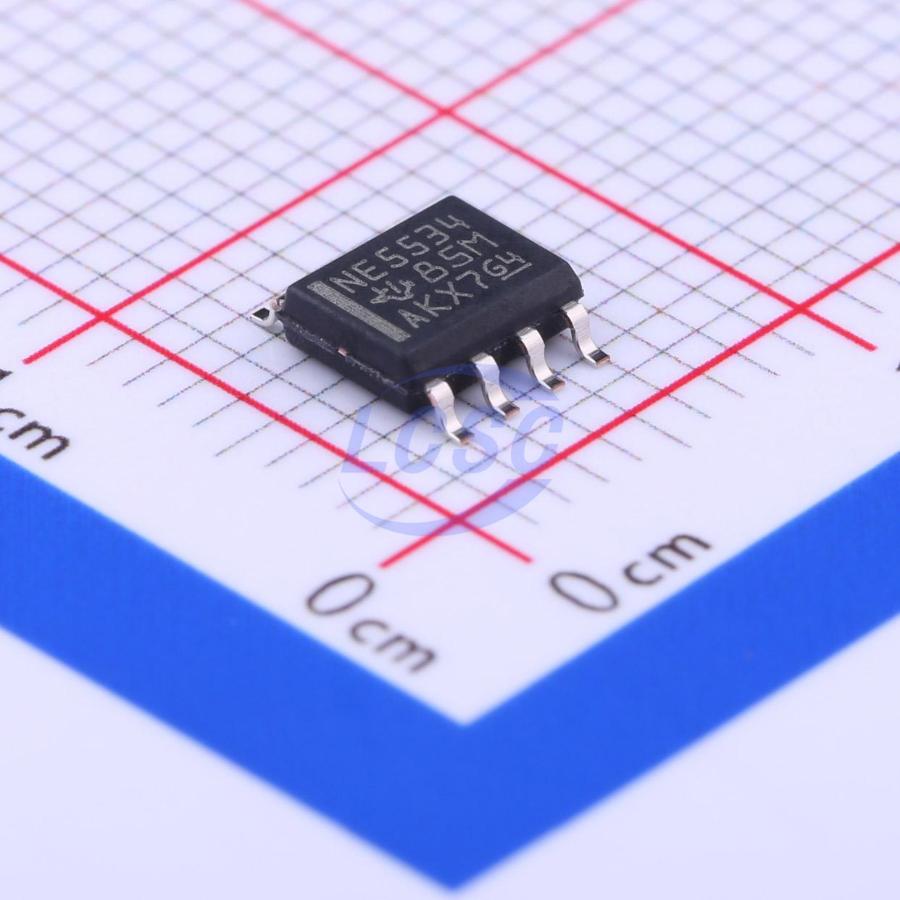

NE5534DR
38mA 1 4mV 13V/us 100dB 1.5uA 4mA 10MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
LOW-NOISE OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- NE5534DR
- Store part #
- C9916
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,289 in stock
#C9916
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.46 | ₹86.46 |
| 10+ | ₹71.65 | ₹716.50 |
| 30+ | ₹64.24 | ₹1,927.20 |
| 100+ | ₹56.85 | ₹5,685.00 |
| 500+ | ₹52.50 | ₹26,250.00 |
| 1,000+ | ₹50.09 | ₹50,090.00 |
1 × ₹86.46
₹86.46
excl. GST
₹102.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE5534DR
₹86.46 for 1 + GST
Specifications
- Output Current
- 38mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 300nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 1.5uA
- Quiescent Current
- 4mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 3.5nV/√Hz@1kHz
- Dual Supply
- 3V~20V;-20V~-3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The NE5534 and NE5534A are high-performance operational amplifiers combining excellent dc and ac characteristics. Some of the features include very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, and high slew rate. These operational amplifiers are compensated internally for a gain equal to or greater than three. Optimization of the frequency response for various applications can be obtained by use of an external compensation capacitor between COMP and COMP/BAL. The devices feature input-protection diodes, output short-circuit protection, and offset-voltage nulling capability with use of the BALANCE and COMP/BAL pins. For the NE5534A, a maximum limit is specified for the equivalent input noise voltage.
Applications
- Audio preamplifier
- Servo error amplifier
- Medical equipment
- Telephone channel amplifier
Key features
- High DC Voltage Gain: 100 V/mV Typ
- Peak-to-Peak Output Voltage Swing: 32 V Typ With vcc± = ±18 V and RL = 600 Ω
- High Slew Rate: 13 V/μs Typ
- Wide Supply-Voltage Range: ±3 V to ±20 V
- Low Harmonic Distortion
- Offset Nulling Capability
- External Compensation Capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NE5534ADR#C189889TI · SOIC-8 | TI | SOIC-8 | 2,500 | ₹178.38 · 2,500 in stock | View |
 | NE5534DR(LX)#C49396707lingxingic · SOP-8 | lingxingic | SOP-8 | 4,030 | ₹37.71 · 4,030 in stock | View |
 | LM318G-S08-R#C20623800UTC · SOP-8 | UTC | SOP-8 | 1,020 | ₹24.53 · 1,020 in stock | View |
| AiP5534SA8.TR#C52722528Wuxi I-core Elec · SOP-8 | Wuxi I-core Elec | SOP-8 | 180 | ₹55.96 · 180 in stock | View | |
 | LM318MX/NOPB#C128749TI · SOIC-8 | TI | SOIC-8 | 387 | ₹219.42 · 387 in stock | View |
