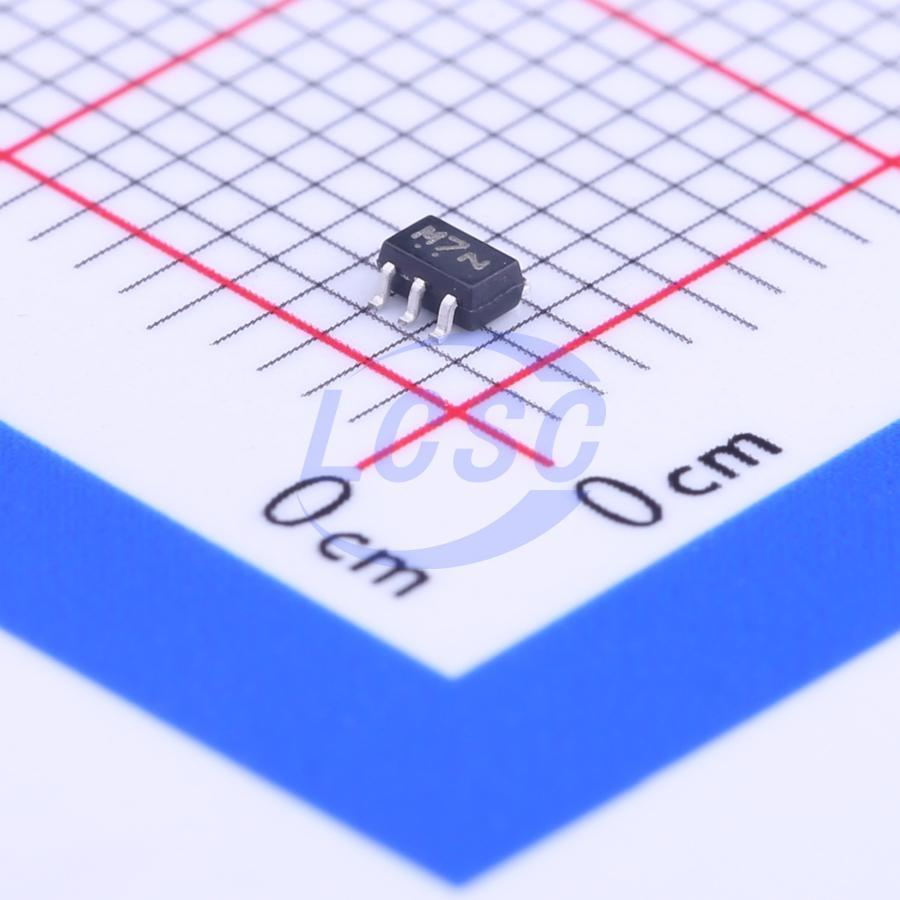

NL27WZ07DFT2G

The NL27WZ07 is a high performance dual buffer with open drain outputs operating from a 1.65 to 5.5 V supply. The internal circuit is composed of multiple stages, including an open drain output. The open drain output provides the capability to set the output switching level to a user selectable value with an external resistor and power supply. The logic high output value is set by the external power supply and can be less than, equal or greater than the VCC power supply, provided the voltage supply is less than 5.5 V.

Key features

• Extremely High Speed: tPD 2.3 ns (typical) at VCC = 5 V
• Designed for 1.65 V to 5.5 V VCC Operation, CMOS compatible
• Over Voltage Tolerant Inputs
• LVTTL Compatible − Interface Capability with 5 V TTL Logic with VCC = 3 V
• LVCMOS Compatible
• 24 mA Output Sink Capability
• Near Zero Static Supply Current Substantially Reduces System Power Requirements
• Chip Complexity: FET = 72 ; Equivalent Gate = 18
• These Devices are Pb − Free and are RoHS Compliant
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
