VBsemi ElecDatasheet (PDF)

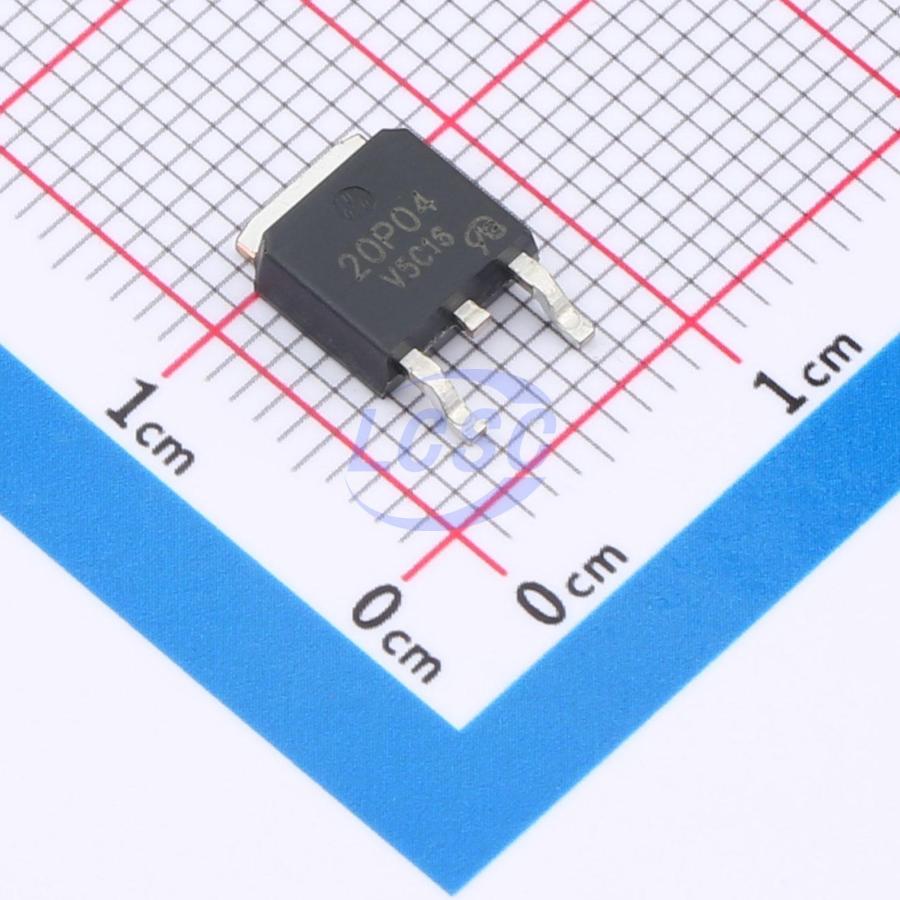

NP20P04SLG-E1-AY-VB
P-Channel 40V 50A 3W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 40V 50A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NP20P04SLG-E1-AY-VB
- Store part #
- C47994017
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C47994017
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.62 | ₹98.62 |
| 10+ | ₹82.08 | ₹820.80 |
| 30+ | ₹73.59 | ₹2,207.70 |
| 100+ | ₹65.32 | ₹6,532.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹98.62
₹98.62
excl. GST
₹116.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NP20P04SLG-E1-AY-VB
₹98.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 50A
- Output Capacitance(Coss)
- 635pF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 440pF
- RDS(on)
- 15mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.62 g
Overview
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD50P04P4L11ATMA1-VB#C47994031VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹96.92 · 10 in stock | View |
 | STD46P4LLF6-VB#C53063687VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹103.63 · 5 in stock | View |
 | SQD50P04-13L-GE3-VB#C47994004VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹116.25 · 10 in stock | View |
 | SFT1350.-VB#C22389031VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹85.92 · 20 in stock | View |
 | HM40P04K-VB#C20755659VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 7 | ₹85.92 · 7 in stock | View |
