onsemiDatasheet (PDF)

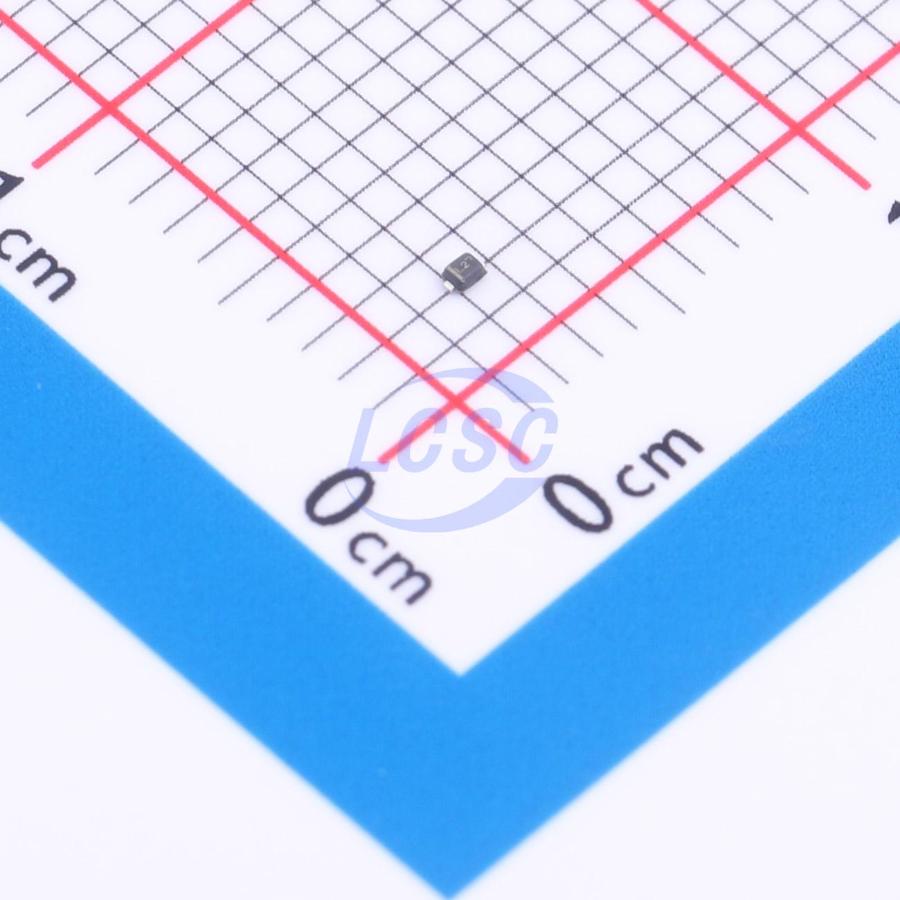

NSR01L30P2T5G
1 Independent 30V 530mV@100mA 100mA SOD-923 Single Diodes RoHS
SOD-923ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NSR01L30P2T5G
- Store part #
- C896421
- Package / case
- SOD-923
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C896421
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.13 | ₹200.65 |
| 50+ | ₹31.73 | ₹1,586.50 |
| 150+ | ₹28.13 | ₹4,219.50 |
| 500+ | ₹23.64 | ₹11,820.00 |
| 2,500+ | ₹21.64 | ₹54,100.00 |
| 5,000+ | ₹20.44 | ₹1,02,200.00 |
5 × ₹40.13
₹200.65
excl. GST
₹236.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NSR01L30P2T5G
₹200.65 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 530mV@100mA
- Reverse Leakage Current (Ir)
- 3uA@30V
- Non-Repetitive Peak Forward Surge Current
- 1A
- Current - Rectified
- 100mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NSR0130P2T5G#C146776onsemi · SOD-923 | onsemi | SOD-923 | 9,490 | ₹9.70 · 9,490 in stock | View |
 | NSR0340P2T5G#C146801onsemi · SOD-923 | onsemi | SOD-923 | 6,990 | ₹5.37 · 6,990 in stock | View |
 | RB521CS-30#C47283679TWGMC · SOD-923 | TWGMC | SOD-923 | 6,900 | ₹2.59 · 6,900 in stock | View |
 | 1SS416,L3M(B#C2943683TOSHIBA · SOD-923 | TOSHIBA | SOD-923 | 56,620 | ₹4.11 · 56,620 in stock | View |
 | NSR0240P2T5G#C896425onsemi · SOD-923 | onsemi | SOD-923 | 6,175 | ₹13.44 · 6,175 in stock | View |
