VBsemi ElecDatasheet (PDF)

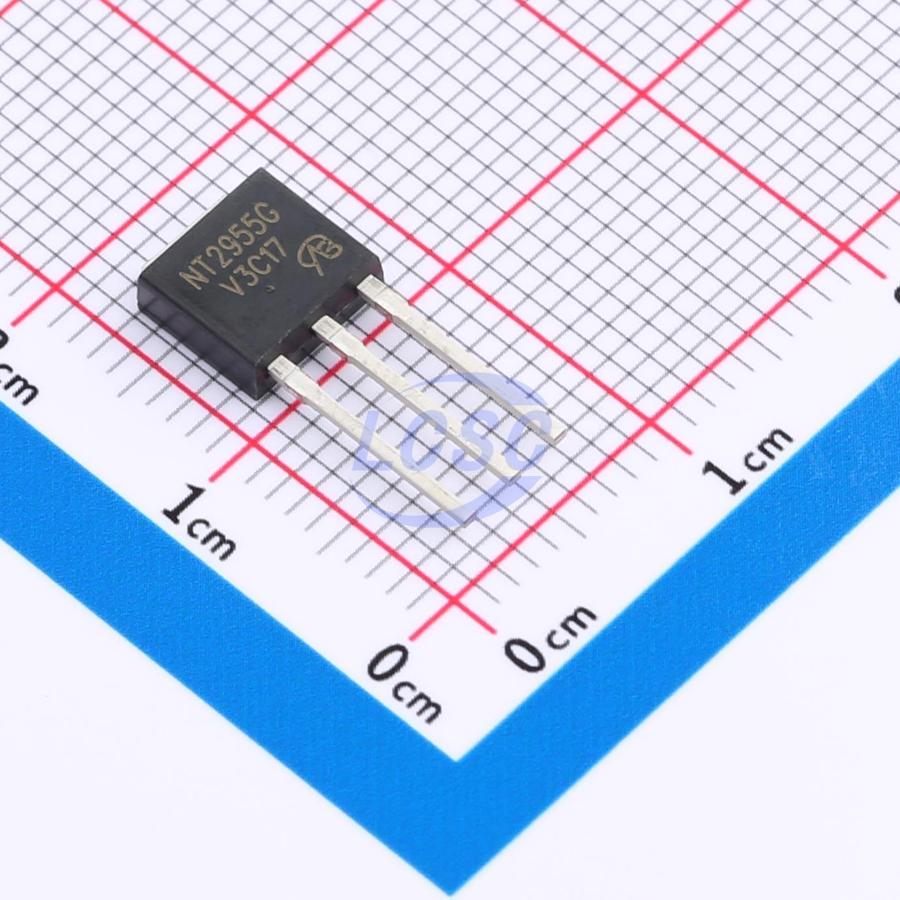

NTD2955-1G-VB
P-Channel 60V 20A 20W Through Hole TO-251
TO-251RoHSActive
MOSFET P-CH 60V 20A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTD2955-1G-VB
- Store part #
- C19188154
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C19188154
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.08 | ₹66.08 |
| 10+ | ₹52.51 | ₹525.10 |
| 30+ | ₹46.64 | ₹1,399.20 |
| 80+ | ₹36.70 | ₹2,936.00 |
| 480+ | ₹33.46 | ₹16,060.80 |
| 960+ | ₹31.42 | ₹30,163.20 |
1 × ₹66.08
₹66.08
excl. GST
₹77.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
NTD2955-1G-VB
₹66.08 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 20W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 66mΩ@10V;80mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 40nC@10V;38nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.125 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% unclamped inductive switching (UIS) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFU9010PBF-VB#C2680721VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 50 | ₹67.22 · 50 in stock | View |
 | FU9024NC-VB#C18212587VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 80 | ₹83.60 · 80 in stock | View |
 | IRLU9343PBF-VB#C19190203VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 8 | ₹69.07 · 8 in stock | View |
 | IRFU9014NPBF-VB#C19626841VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 30 | ₹75.19 · 30 in stock | View |
 | FU9024-VB#C20417446VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 80 | ₹75.19 · 80 in stock | View |
