HXY MOSFETDatasheet (PDF)

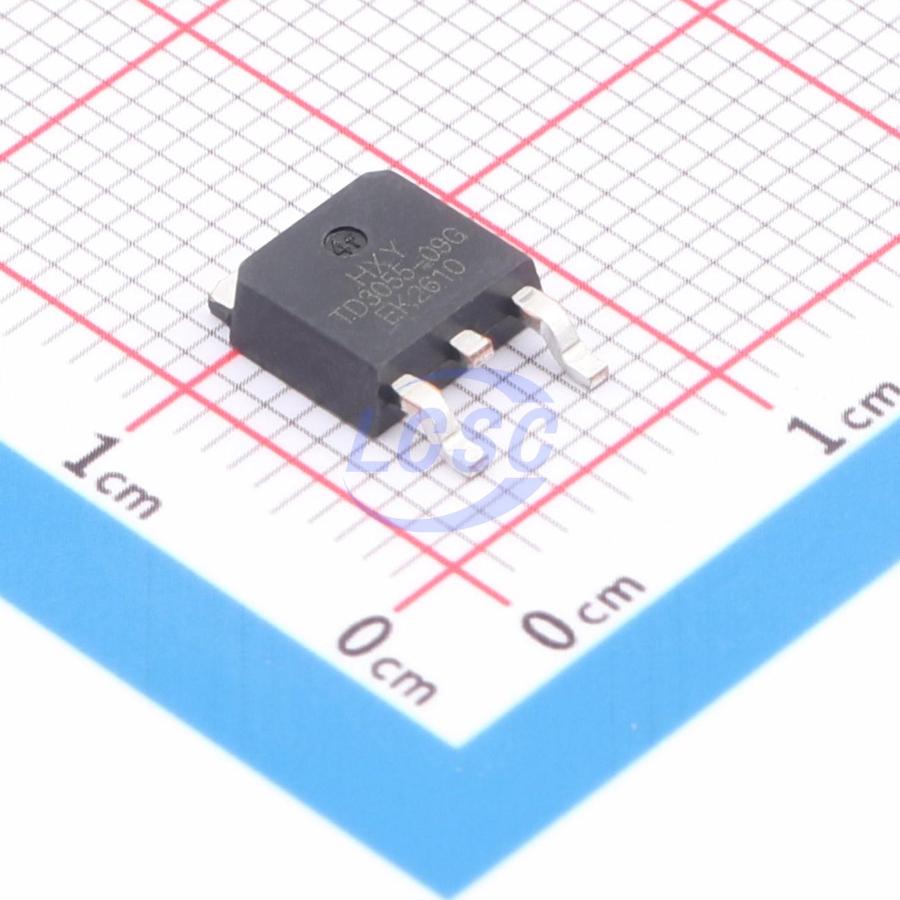

NTD3055-094G-HXY
60V 8A 16W 88mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTD3055-094G-HXY
- Store part #
- C54582760
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582760
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.38 | ₹176.90 |
| 50+ | ₹28.34 | ₹1,417.00 |
| 150+ | ₹25.31 | ₹3,796.50 |
| 500+ | ₹21.55 | ₹10,775.00 |
| 2,500+ | ₹17.78 | ₹44,450.00 |
| 5,000+ | ₹16.78 | ₹83,900.00 |
5 × ₹35.38
₹176.90
excl. GST
₹208.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD3055-094G-HXY
₹176.90 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 8A
- Output Capacitance(Coss)
- 28pF
- Ciss-Input Capacitance
- 349pF
- Pd - Power Dissipation
- 16W
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 88mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.4 g
Overview
NTD3055 - 094G utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 60V, ID = 8A
- RDS(ON) < 100mΩ (at VGS = 10V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD3055-094T4G-HXY#C54582731HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹54.60 · 15 in stock | View |
 | RFD3055LESM9A-HXY#C54582733HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 40 | ₹45.17 · 40 in stock | View |
 | STD12NF06T4-HXY#C54582735HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 40 | ₹46.25 · 40 in stock | View |
 | NVD3055-094T4G-VF01-HXY#C54582736HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹81.25 · 48 in stock | View |
 | NTD15N06LT4G-HXY#C54582743HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 40 | ₹48.44 · 40 in stock | View |
