VBsemi ElecDatasheet (PDF)

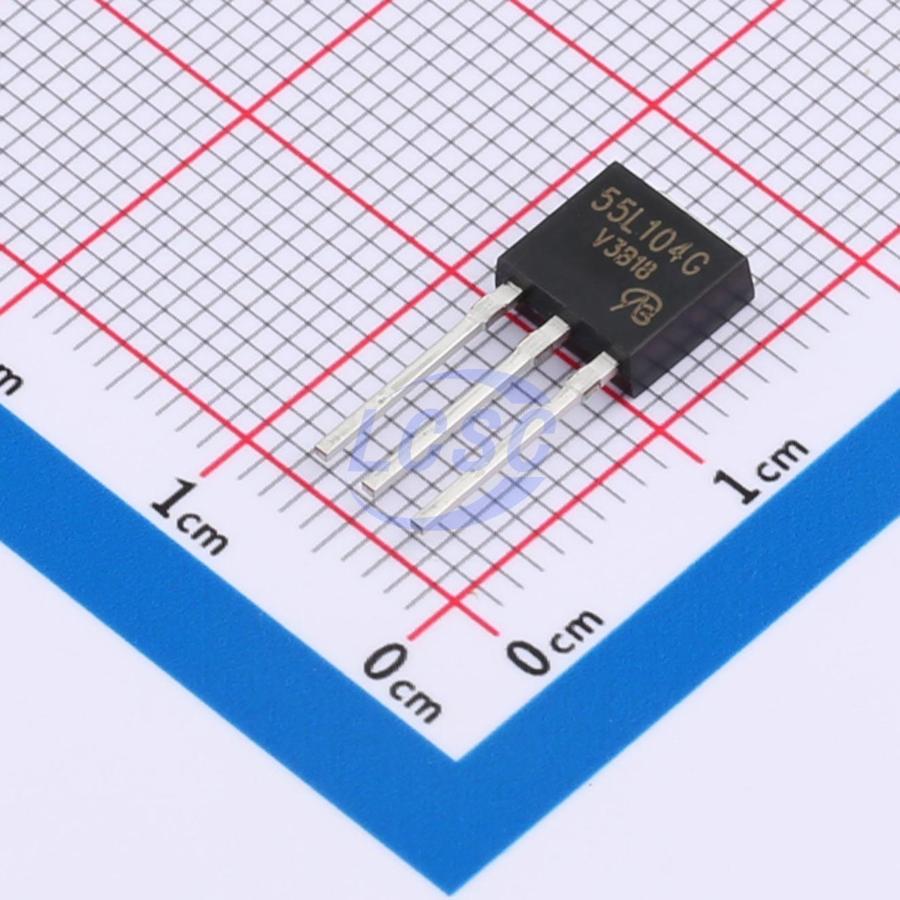

NTD3055L104-1G-VB
N-Channel 60V 30A 35W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 60V 30A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTD3055L104-1G-VB
- Store part #
- C7429081
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C7429081
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.29 | ₹62.29 |
| 10+ | ₹50.50 | ₹505.00 |
| 30+ | ₹45.31 | ₹1,359.30 |
| 80+ | ₹33.54 | ₹2,683.20 |
| 480+ | ₹30.55 | ₹14,664.00 |
| 960+ | ₹28.95 | ₹27,792.00 |
1 × ₹62.29
₹62.29
excl. GST
₹73.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
NTD3055L104-1G-VB
₹62.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 281pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 35W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 32mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.752 g
Overview
Applications
- Power Supply - Secondary Synchronous Rectification DC/DC Converter
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT HALOGEN FREE
