HXY MOSFETDatasheet (PDF)

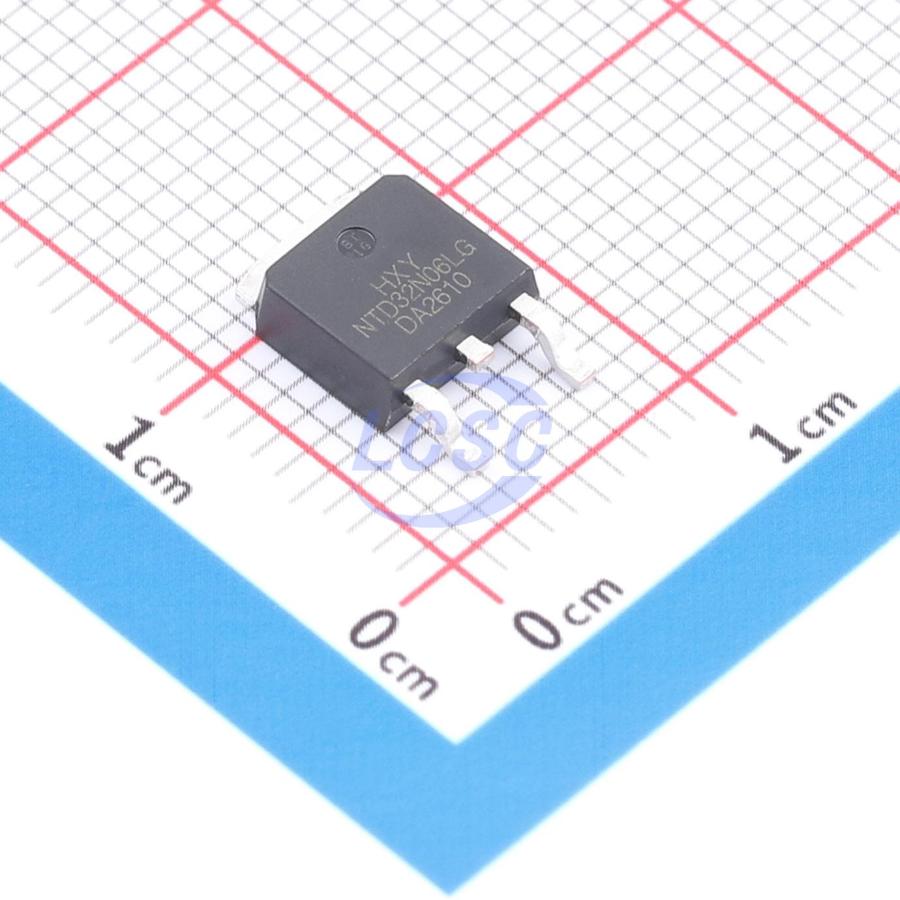

NTD32N06LG-HXY
60V 30A 34.7W 22mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTD32N06LG-HXY
- Store part #
- C54582508
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582508
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.25 | ₹226.25 |
| 50+ | ₹36.25 | ₹1,812.50 |
| 150+ | ₹32.39 | ₹4,858.50 |
| 500+ | ₹27.57 | ₹13,785.00 |
| 2,500+ | ₹22.74 | ₹56,850.00 |
| 5,000+ | ₹21.46 | ₹1,07,300.00 |
5 × ₹45.25
₹226.25
excl. GST
₹266.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD32N06LG-HXY
₹226.25 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 86pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.378nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 64pF
- RDS(on)
- 22mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.414 g
Overview
The NTD32N06LG utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage VDS = 60V, drain current ID = 30A
- On-resistance RDS(ON) < 26mΩ at gate-source voltage VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLR2905PBF-HXY#C20606245HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 2,405 | ₹25.67 · 2,405 in stock | View |
 | STD30NF06LT4-HXY#C22366613HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹29.75 · 5 in stock | View |
 | IRFR1205PBF-HXY#C22366615HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 235 | ₹36.12 · 235 in stock | View |
 | HXY30N06D#C3033431HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 175 | ₹27.57 · 175 in stock | View |
 | HIPD25N06S4L30ATMA2#C42401084HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹62.14 · 15 in stock | View |
