HXY MOSFETDatasheet (PDF)

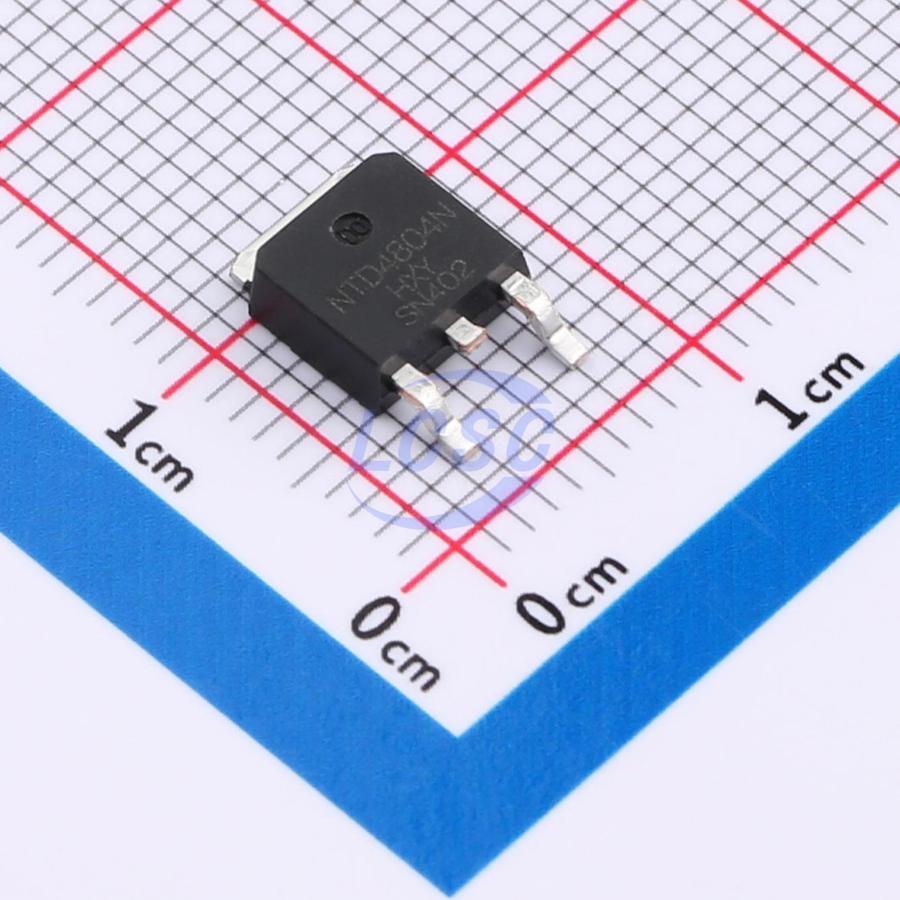

NTD4804N-HXY
N-Channel 30V 120A 62.5W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 30V 120A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTD4804N-HXY
- Store part #
- C22367132
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C22367132
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.09 | ₹140.45 |
| 50+ | ₹22.05 | ₹1,102.50 |
| 150+ | ₹19.47 | ₹2,920.50 |
| 500+ | ₹16.25 | ₹8,125.00 |
| 2,500+ | ₹14.80 | ₹37,000.00 |
| 5,000+ | ₹13.94 | ₹69,700.00 |
5 × ₹28.09
₹140.45
excl. GST
₹165.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD4804N-HXY
₹140.45 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 850pF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 2.485nF
- Pd - Power Dissipation
- 62.5W
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.366 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH3004LK3-HXY#C22367130HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹36.71 · 50 in stock | View |
 | NTD4904N-HXY#C22367133HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 140 | ₹38.43 · 140 in stock | View |
 | DMN39M1LK3-13-HXY#C53263024HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 196 | ₹52.48 · 196 in stock | View |
 | IPD040N03LGATMA1-HXY#C53263031HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 160 | ₹39.03 · 160 in stock | View |
 | IPD040N03LF2SATMA1-HXY#C53263053HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 89 | ₹80.60 · 89 in stock | View |
