HXY MOSFETDatasheet (PDF)

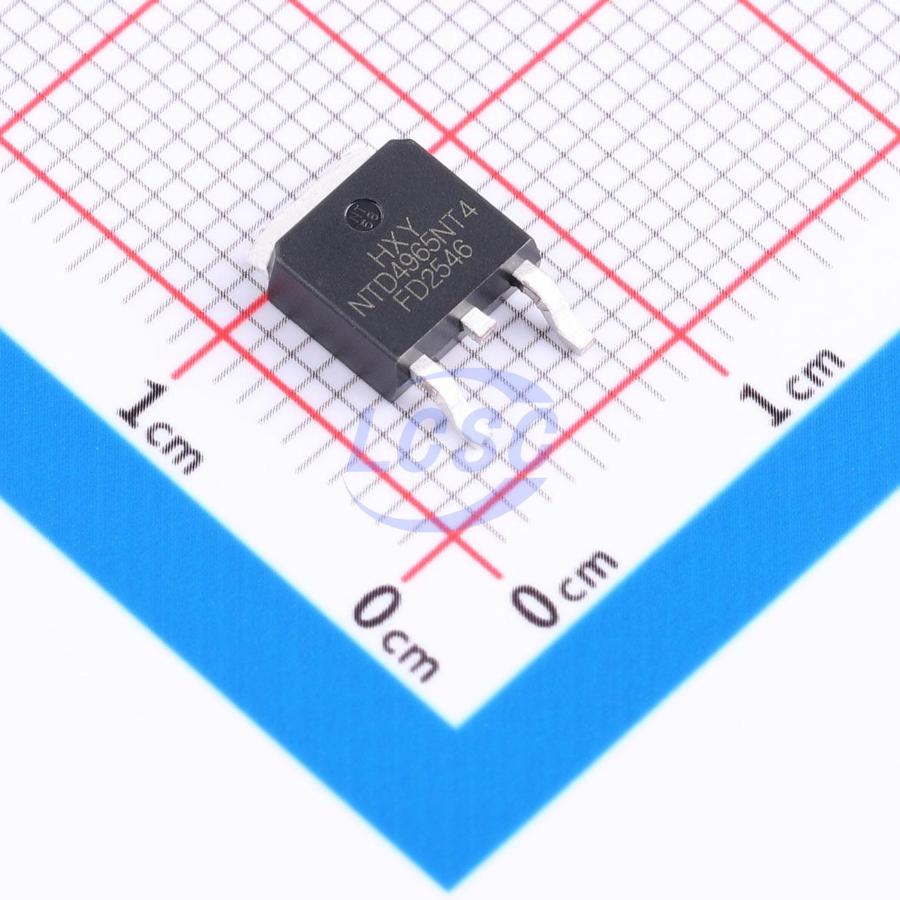

NTD4965NT4G-HXY
62.5W 30V 120A 3mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTD4965NT4G-HXY
- Store part #
- C53263321
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C53263321
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.36 | ₹60.36 |
| 10+ | ₹48.54 | ₹485.40 |
| 30+ | ₹43.39 | ₹1,301.70 |
| 100+ | ₹36.95 | ₹3,695.00 |
| 500+ | ₹33.93 | ₹16,965.00 |
| 1,000+ | ₹32.23 | ₹32,230.00 |
1 × ₹60.36
₹60.36
excl. GST
₹71.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD4965NT4G-HXY
₹60.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 850pF
- Ciss-Input Capacitance
- 2.485nF
- Pd - Power Dissipation
- 62.5W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.377 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN39M1LK3-13-HXY#C53263024HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 196 | ₹52.48 · 196 in stock | View |
 | IPD040N03LGATMA1-HXY#C53263031HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 160 | ₹39.03 · 160 in stock | View |
 | IPD040N03LF2SATMA1-HXY#C53263053HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 89 | ₹80.60 · 89 in stock | View |
 | NVD4C05NT4G-HXY#C53263133HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 99 | ₹195.66 · 99 in stock | View |
 | IPD040N03LGBTMA1-HXY#C53263221HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 98 | ₹77.54 · 98 in stock | View |
