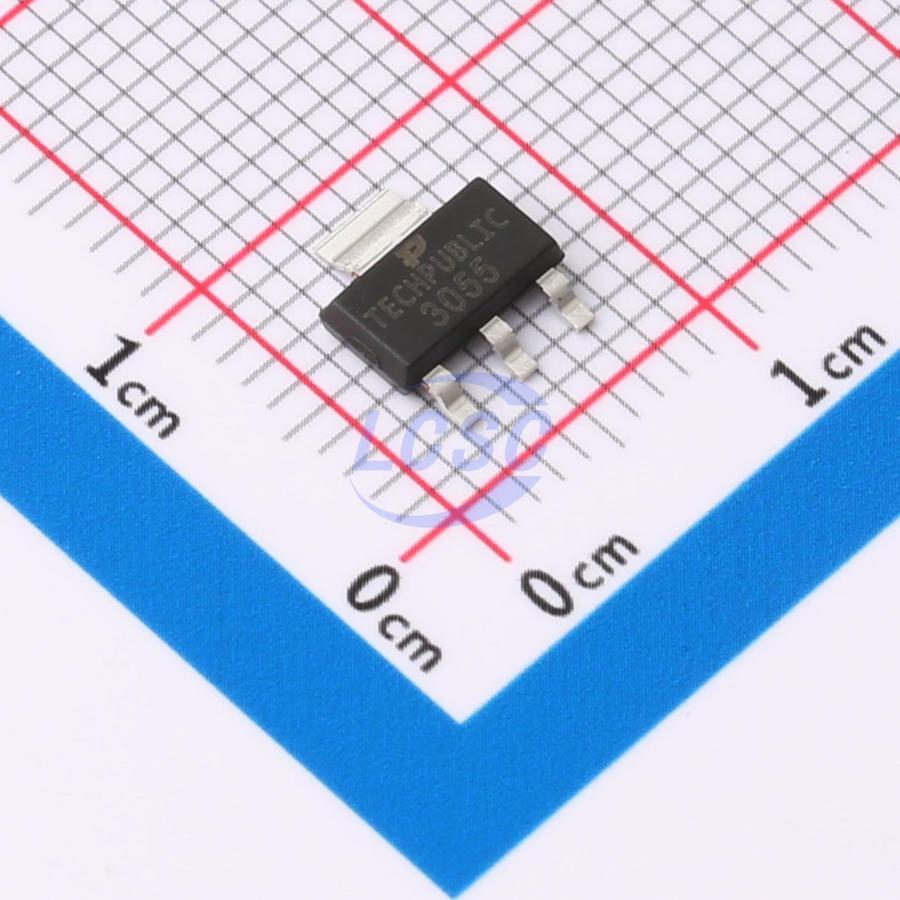

NTF3055-100T1G
60V 3W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET 60V SOT-223
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NTF3055-100T1G
- Store part #
- C7472934
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,730 in stock
#C7472934
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.07 | ₹160.35 |
| 50+ | ₹25.49 | ₹1,274.50 |
| 150+ | ₹22.68 | ₹3,402.00 |
| 500+ | ₹19.17 | ₹9,585.00 |
| 2,500+ | ₹17.60 | ₹44,000.00 |
| 5,000+ | ₹16.66 | ₹83,300.00 |
5 × ₹32.07
₹160.35
excl. GST
₹189.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTF3055-100T1G
₹160.35 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 530pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 85mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.232 g
Overview
GSFP0341 utilizes the latest technology to achieve high cell density and low on-resistance. These characteristics make the device highly efficient and reliable in switching mode power supplies and a wide variety of other applications.
Applications
- Load/Power Switch
- Interface Switch
- Logic Level Translation
Key features
- 60V, 4A, R DS(ON) = 85 mΩ at VGS = 10V
- RDS(ON) = 100 mΩ at VGS = 4.5V
- High-density cell design for ultra-low RDS(ON)
- Robust and reliable
- Lead-free
- SOT-223 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLL014NTRPBF-TP#C41407976TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,565 | ₹36.01 · 2,565 in stock | View |
 | NDT3055L#C7472932TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 10,785 | ₹23.38 · 10,785 in stock | View |
 | NTF3055L108T1G#C7472933TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 5,335 | ₹37.80 · 5,335 in stock | View |
 | STN3NF06L#C7472935TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 1,820 | ₹31.65 · 1,820 in stock | View |
 | TPM604NY3#C7472936TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 4,990 | ₹36.85 · 4,990 in stock | View |
