MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

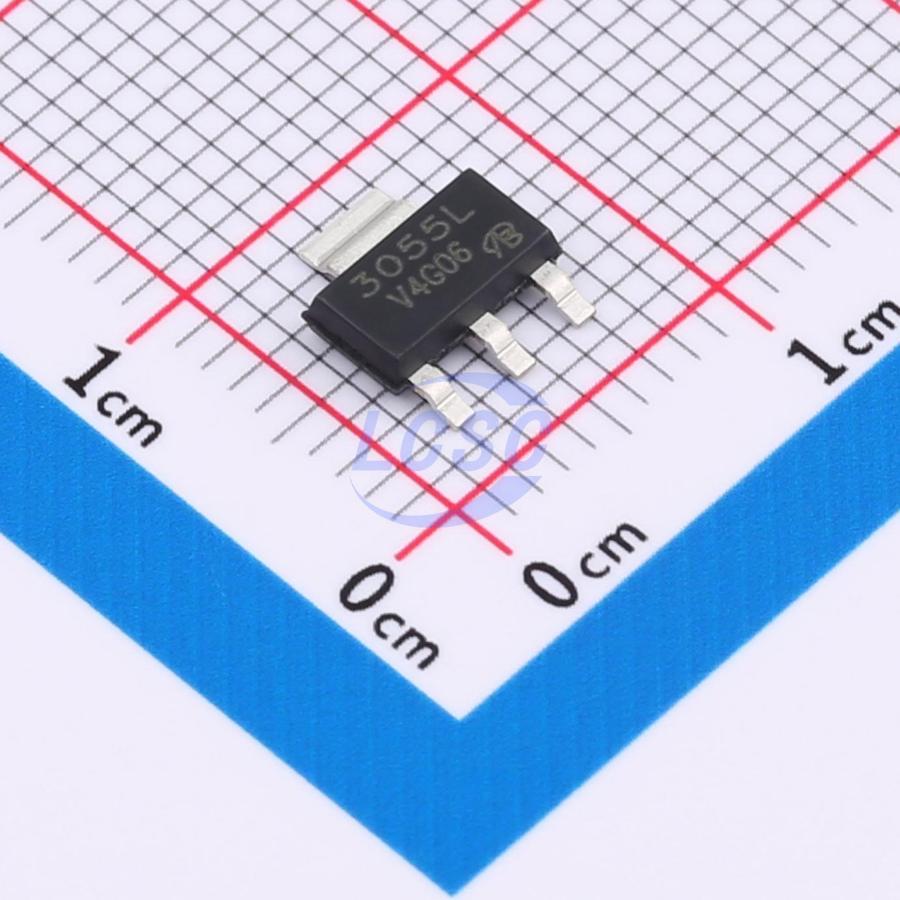

NTF3055L108T3G-VB
N-Channel 60V 4.5A 4W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET N-CH 60V 4.5A SOT-223
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTF3055L108T3G-VB
- Store part #
- C20755560
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C20755560
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.87 | ₹219.35 |
| 50+ | ₹34.45 | ₹1,722.50 |
| 150+ | ₹30.42 | ₹4,563.00 |
| 500+ | ₹25.38 | ₹12,690.00 |
| 2,500+ | ₹23.14 | ₹57,850.00 |
| 5,000+ | ₹21.79 | ₹1,08,950.00 |
5 × ₹43.87
₹219.35
excl. GST
₹258.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTF3055L108T3G-VB
₹219.35 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 810pF
- Pd - Power Dissipation
- 4W
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 76mΩ@10V;85mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
Applications
- Load switch for portable devices
Key features
- Halogen-Free Trench Power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NIF62514T1G-VB#C20417500VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 25 | ₹43.87 · 25 in stock | View |
 | VBJ1695#C416325VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 15 | ₹64.75 · 15 in stock | View |
 | BUK98150-55A-VB#C18212617VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 85 | ₹55.70 · 85 in stock | View |
 | ZVN2106GTA-VB#C19188225VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | On request | ₹55.86 · 0 in stock | View |
 | NDT014L-VB#C20755379VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 50 | ₹58.57 · 50 in stock | View |
