onsemiDatasheet (PDF)

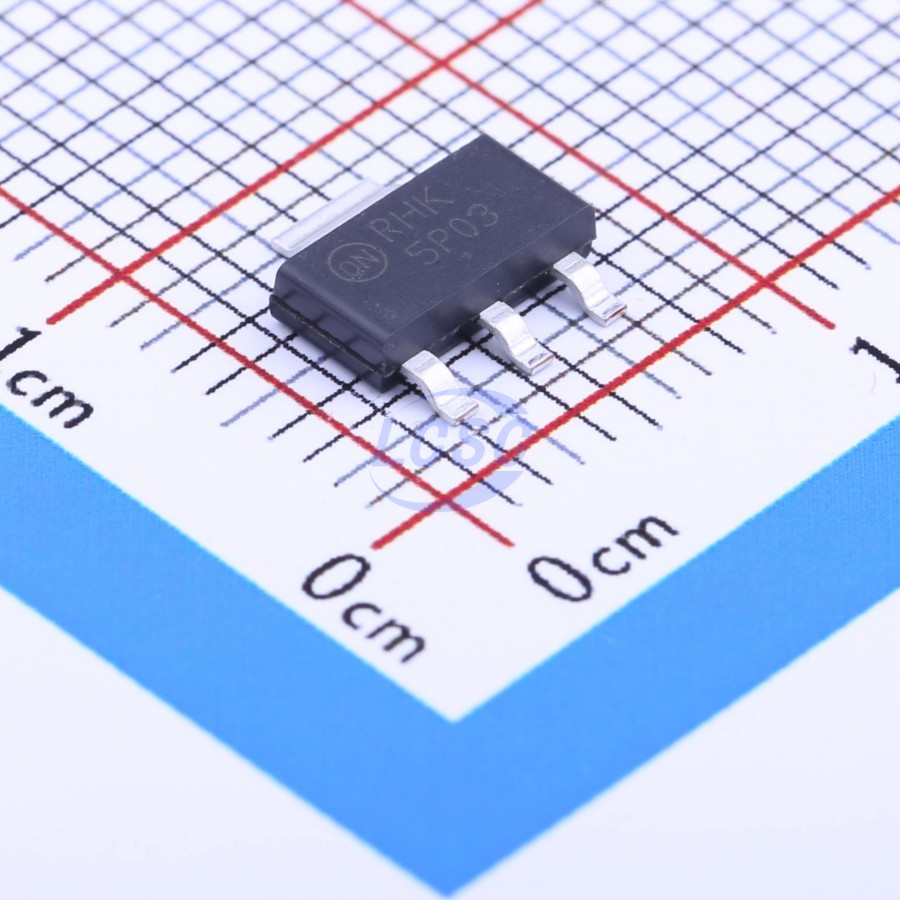

NTF5P03T3G
P-Channel 30V 5.2A 1.56W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET P-CH 30V 5.2A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- NTF5P03T3G
- Store part #
- C145552
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
119 in stock
#C145552
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.96 | ₹136.96 |
| 10+ | ₹110.92 | ₹1,109.20 |
| 30+ | ₹98.11 | ₹2,943.30 |
| 100+ | ₹85.31 | ₹8,531.00 |
| 500+ | ₹77.49 | ₹38,745.00 |
| 1,000+ | ₹73.59 | ₹73,590.00 |
1 × ₹136.96
₹136.96
excl. GST
₹161.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NTF5P03T3G
₹136.96 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 153pF
- Ciss-Input Capacitance
- 500pF
- Pd - Power Dissipation
- 1.56W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.2A
- Reverse Transfer Capacitance (Crss)
- 58pF
- RDS(on)
- 150mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
Applications
- DC−DC Converters
- Power Management
- Motor Controls
- Inductive Loads
- Replaces MMFT5P03HD
Key features
- Ultra Low RDS(on)
- Higher Efficiency Extending Battery Life
- Logic Level Gate Drive
- Miniature SOT−223 Surface Mount Package
- Avalanche Energy Specified
- AEC−Q101 Qualified and PPAP Capable − NVF5P03T3G
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NVF5P03T3G#C895162onsemi · SOT-223-3 | onsemi | SOT-223-3 | 72 | ₹156.27 · 72 in stock | View | |
 | HSL3103#C7543690HUASHUO · SOT-223 | HUASHUO | SOT-223 | 365 | ₹29.08 · 365 in stock | View |
 | DMP6250SE-13#C156294DIODES · SOT-223 | DIODES | SOT-223 | 2 | ₹76.40 · 2 in stock | View |
 | MCT06P10-TP#C48937501JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 875 | ₹43.20 · 875 in stock | View |
 | DMP6023LE-13#C154901DIODES · SOT-223 | DIODES | SOT-223 | 15,576 | ₹78.16 · 15,576 in stock | View |
