onsemiDatasheet (PDF)

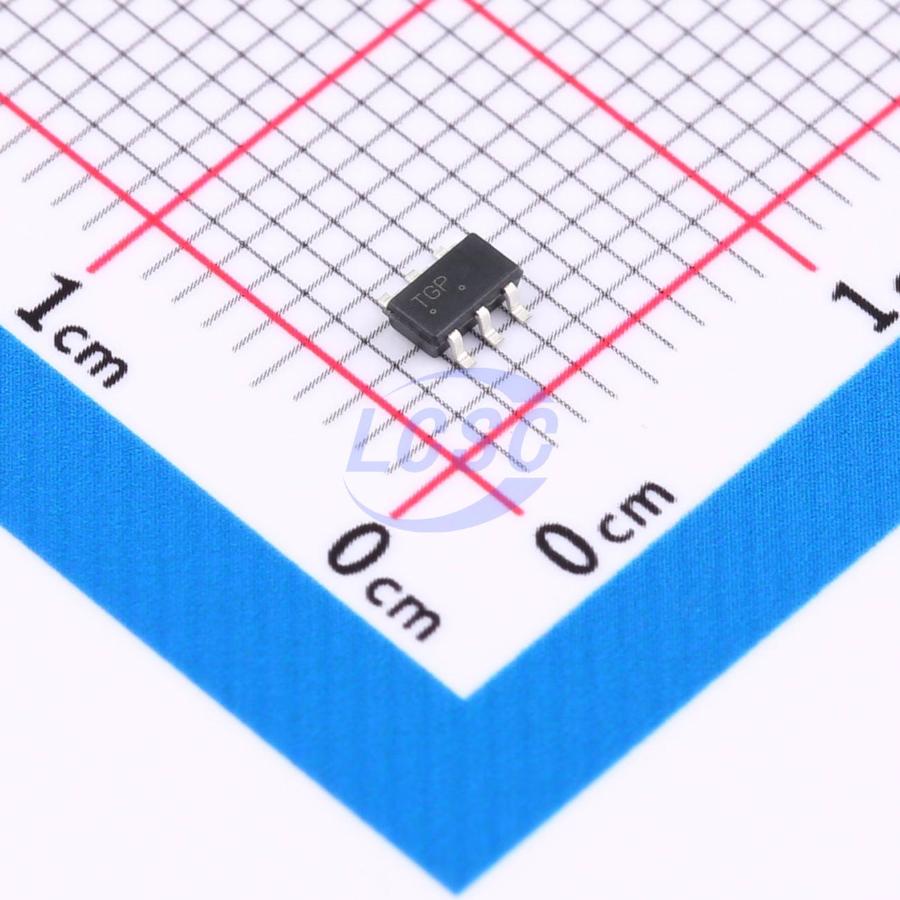

NTGS4111PT1G
P-Channel 30V 4.7A 1.25W Surface Mount SC-88
SC-88ROHS3 CompliantActive
MOSFET P-CH 30V 4.7A SC-88
- Manufacturer
- onsemi
- Manufacturer part #
- NTGS4111PT1G
- Store part #
- C15740
- Package / case
- SC-88
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
745 in stock
#C15740
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.72 | ₹213.60 |
| 50+ | ₹34.32 | ₹1,716.00 |
| 150+ | ₹30.72 | ₹4,608.00 |
| 500+ | ₹26.24 | ₹13,120.00 |
| 3,000+ | ₹18.87 | ₹56,610.00 |
| 6,000+ | ₹17.66 | ₹1,05,960.00 |
5 × ₹42.72
₹213.60
excl. GST
₹252.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTGS4111PT1G
₹213.60 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 140pF
- Ciss-Input Capacitance
- 750pF
- Pd - Power Dissipation
- 1.25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 4.7A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 110mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 32nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Applications
- Battery Management and Switching
- Load Switching
- Battery Protection
Key features
- Leading -30 V Trench Process for Low RDS(on)
- Low Profile Package Suitable for Portable Applications
- Surface Mount TSOP−6 Package Saves Board Space
- Improved Efficiency for Battery Applications
- NV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- Pb−Free Package is Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM30V5PS6-1#C5246400TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 780 | ₹20.48 · 780 in stock | View |
