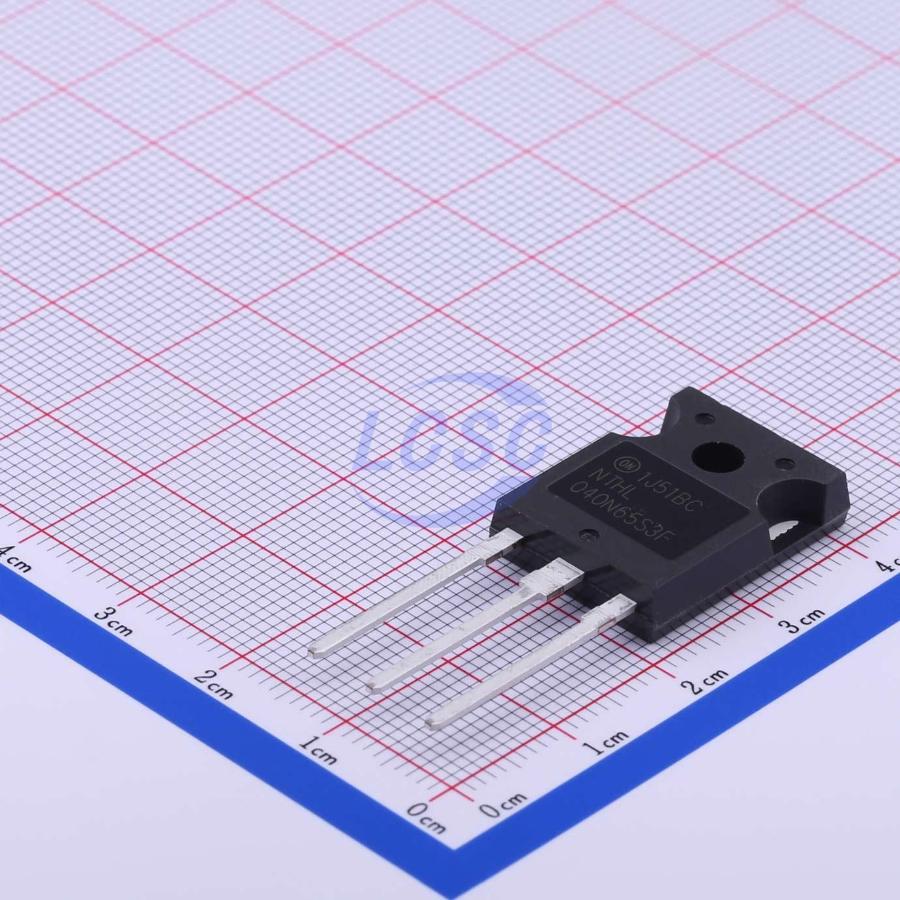

NTHL040N65S3F
650V 65A 50W 40mΩ@10V 1 N-channel N-Channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTHL040N65S3F
- Store part #
- C398039
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C398039
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,132.56 | ₹2,132.56 |
| 10+ | ₹2,063.23 | ₹20,632.30 |
1 × ₹2,132.56
₹2,132.56
excl. GST
₹2,516.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
NTHL040N65S3F
₹2,132.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 65A
- Ciss-Input Capacitance
- 5.94nF
- Pd - Power Dissipation
- 50W
- RDS(on)
- 40mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 158nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.03 g
Overview
The SUPERFET III MOSFET is a new high-voltage super-junction (SJ) MOSFET series utilizing charge balance technology, featuring excellent low on-resistance and low gate charge performance. This advanced technology is designed to minimize conduction losses, deliver superior switching performance, and withstand extremely high dv/dt rates. As a result, the SUPERFET III MOSFET is ideally suited for a wide range of power supply systems where miniaturization and higher efficiency are required. The SUPERFET III FRFET MOSFET features an optimized body diode reverse recovery performance, reducing the need for additional components and improving system reliability.
Applications
- Telecom/server power supplies
- Industrial power supplies
- EV chargers
- UPS/solar
Key features
- 700 V @ TJ = 150°C
- Typical RDS(on) = 32 mΩ
- Ultra-low gate charge (typical Qg = 158 nC)
- Low effective output capacitance (typical Coss(eff.) = 1366 pF)
- 100% avalanche tested
- Lead-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTHL040N65S3HF#C604405onsemi · TO-247 | onsemi | TO-247 | 3 | ₹2,751.73 · 3 in stock | View |
 | ASW65R038EFD#C19192888ANHI · TO-247 | ANHI | TO-247 | 46 | ₹725.12 · 46 in stock | View |
 | MJQ80N65F#C34373733MIRACLE POWER · TO-247 | MIRACLE POWER | TO-247 | 28 | ₹659.90 · 28 in stock | View |
 | WTM90N65FMP#C48642354WPMtek · TO-247 | WPMtek | TO-247 | 30 | ₹750.11 · 30 in stock | View |
 | FCH040N65S3-F155#C604986onsemi · TO-247-3 | onsemi | TO-247-3 | 33 | ₹1,569.85 · 33 in stock | View |
