onsemiDatasheet (PDF)

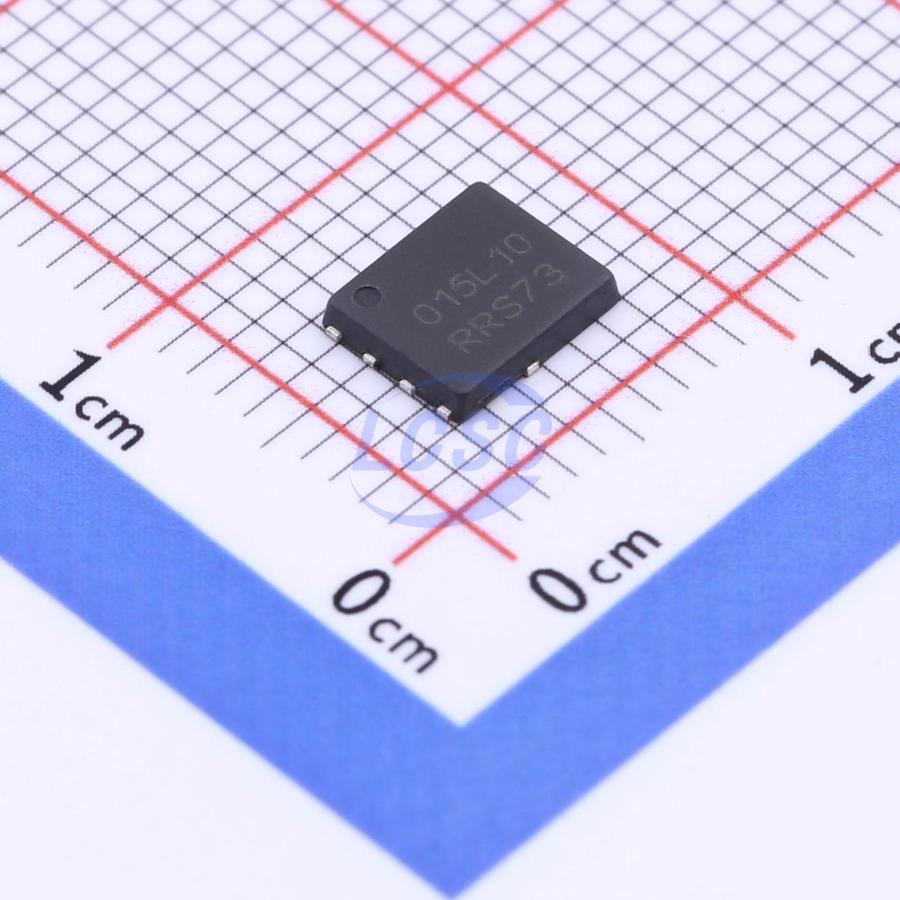

NTMFS015N10MCLT1G
N-Channel 100V 54A 79W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 100V 54A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS015N10MCLT1G
- Store part #
- C900259
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
443 in stock
#C900259
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹240.39 | ₹240.39 |
| 10+ | ₹203.48 | ₹2,034.80 |
| 30+ | ₹180.25 | ₹5,407.50 |
| 100+ | ₹156.56 | ₹15,656.00 |
| 500+ | ₹138.54 | ₹69,270.00 |
| 1,500+ | ₹133.77 | ₹2,00,655.00 |
1 × ₹240.39
₹240.39
excl. GST
₹283.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS015N10MCLT1G
₹240.39 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 54A
- Ciss-Input Capacitance
- 1.338nF
- Pd - Power Dissipation
- 79W
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 12.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
These N-channel enhancement-mode power MOSFETs are manufactured using a proprietary planar stripe DMOS technology. This advanced technology is specifically designed to minimize on-resistance, deliver superior switching performance, and withstand high-energy pulses in avalanche and commutation modes. These devices are ideally suited for high-efficiency switching DC/DC converters, switching power supplies, DC-AC inverters in UPS systems, and motor control applications.
Applications
- Primary DC-DC MOSFET
- Synchronous rectifier in DC-DC and AC-DC
- Motor drive
Key features
- Small Footprint <5x6 mm> for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- Primary DC−DC MOSFET
- Synchronous Rectifier in DC−DC and AC−DC
- Motor Drive
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBQA1101N#C5382701VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹207.47 · 10 in stock | View |
 | HSBA0066#C54842101HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 234 | ₹59.52 · 234 in stock | View |
 | LWT1H13AD5#C54221176Lewa Micro · PDFN-8L(5x6) | Lewa Micro | PDFN-8L(5x6) | 4,950 | ₹44.48 · 4,950 in stock | View |
 | AGM12N10A#C5464768AGMSEMI · PDFN-8(5x6) | AGMSEMI | PDFN-8(5x6) | 880 | ₹44.23 · 880 in stock | View |
 | AONS66923(ES)#C55067972ElecSuper · PDFN-8L(5x6) | ElecSuper | PDFN-8L(5x6) | 698 | ₹92.53 · 698 in stock | View |
