VBsemi ElecDatasheet (PDF)

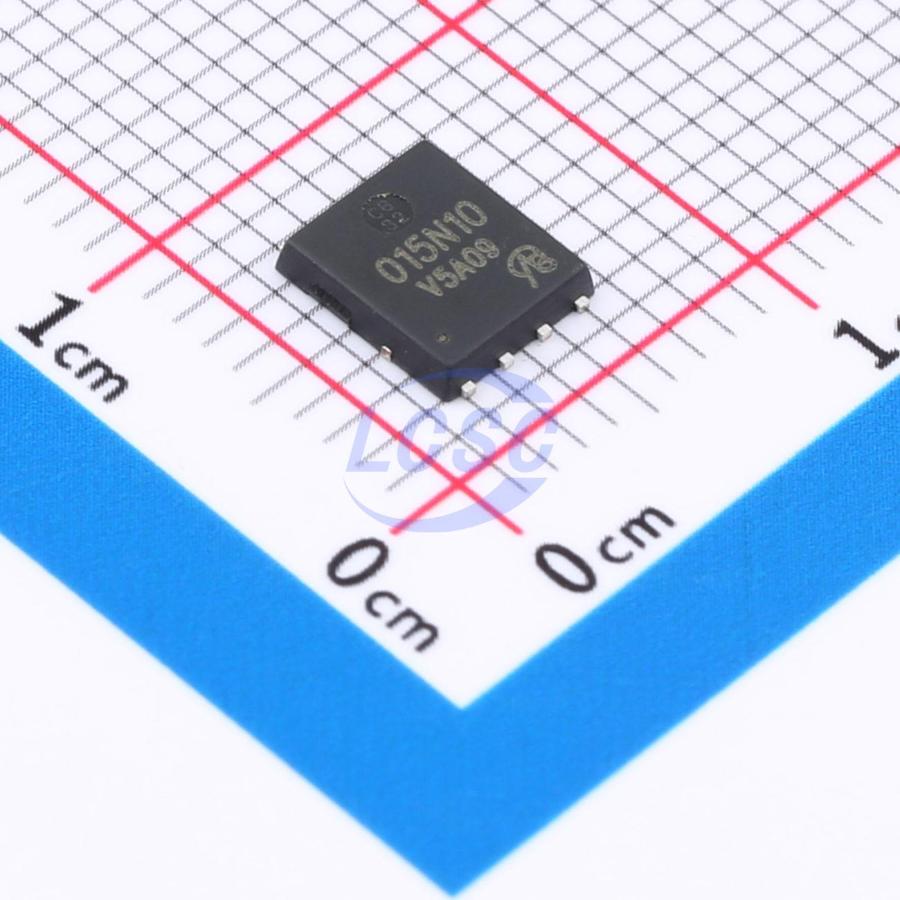

NTMFS015N10MCLT1G-VB
N-Channel 100V 65A 5W Surface Mount DFN-8(5x6)
DFN-8(5x6)RoHSActive
MOSFET N-CH 100V 65A DFN-8(5x6)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTMFS015N10MCLT1G-VB
- Store part #
- C45662520
- Package / case
- DFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C45662520
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹197.67 | ₹197.67 |
| 10+ | ₹163.43 | ₹1,634.30 |
| 30+ | ₹144.71 | ₹4,341.30 |
| 100+ | ₹123.38 | ₹12,338.00 |
| 500+ | ₹113.91 | ₹56,955.00 |
| 1,000+ | ₹109.82 | ₹1,09,820.00 |
1 × ₹197.67
₹197.67
excl. GST
₹233.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS015N10MCLT1G-VB
₹197.67 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 132pF
- Current - Continuous Drain(Id)
- 65A
- Ciss-Input Capacitance
- 3.97nF
- Pd - Power Dissipation
- 5W
- Reverse Transfer Capacitance (Crss)
- 11.2pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.133 g
Overview
Applications
- Isolated DC/DC converter
- N-channel MOSFET
Key features
- Trench Field-Effect Transistor (TrenchFET) power MOSFET
- Junction temperature 175 °C
- Low thermal resistance package
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AON6450-VB#C18794960VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 11 | ₹203.37 · 11 in stock | View |
 | 118N10NS-VB#C20417634VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 48 | ₹201.03 · 48 in stock | View |
 | FDMS86183-VB#C22395912VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 18 | ₹195.01 · 18 in stock | View |
 | IRFH5110TRPBF-VB#C52989060VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 5 | ₹174.38 · 5 in stock | View |
 | VBQA1101N#C5382701VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹207.47 · 10 in stock | View |
