HXY MOSFETDatasheet (PDF)

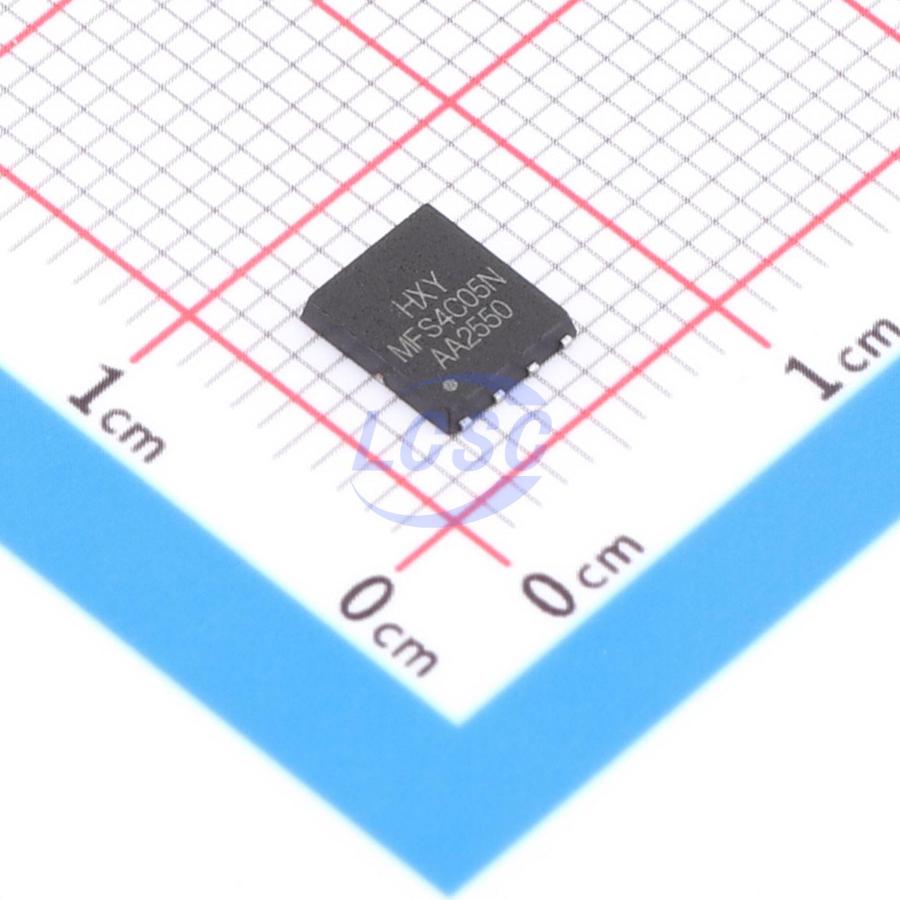

NTMFS4C05N-HXY
N-Channel 30V 150A 187W Surface Mount DFN-8L(5x6)
DFN-8L(5x6)ROHS CompliantActive
MOSFET N-CH 30V 150A DFN-8L(5x6)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTMFS4C05N-HXY
- Store part #
- C22367227
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
243 in stock
#C22367227
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.21 | ₹67.21 |
| 10+ | ₹53.59 | ₹535.90 |
| 30+ | ₹47.54 | ₹1,426.20 |
| 100+ | ₹40.19 | ₹4,019.00 |
| 500+ | ₹36.95 | ₹18,475.00 |
| 1,000+ | ₹35.01 | ₹35,010.00 |
1 × ₹67.21
₹67.21
excl. GST
₹79.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS4C05N-HXY
₹67.21 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 340pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 4.345nF
- Pd - Power Dissipation
- 187W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56.9nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC026NE2LS5-HXY#C20606249HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 1 | ₹131.61 · 1 in stock | View |
 | BSC0902NS-HXY#C20606250HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 203 | ₹67.42 · 203 in stock | View |
 | BSC025N03MS G-HXY#C20606252HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 9 | ₹83.88 · 9 in stock | View |
 | IRFH8318PBF-HXY#C20606253HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 120 | ₹53.22 · 120 in stock | View |
 | NTMFS4C054N-HXY#C22366634HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 125 | ₹79.90 · 125 in stock | View |
