onsemiDatasheet (PDF)

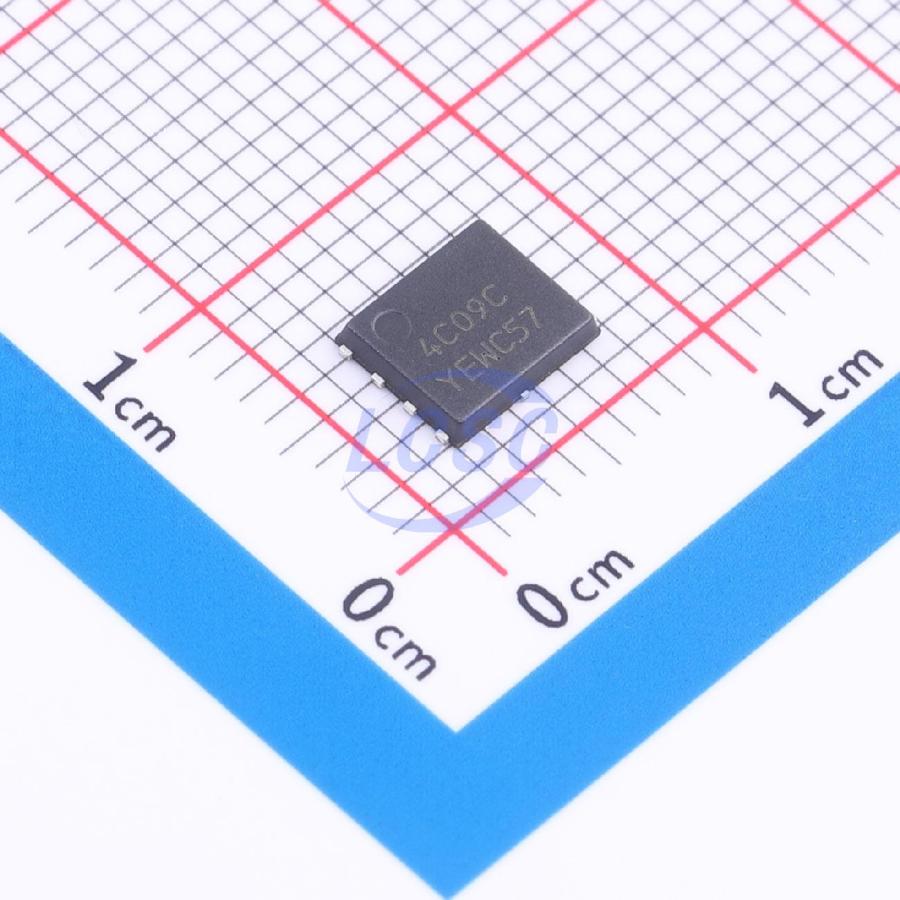

NTMFS4C09NCT1G
25.5W 30V 52A 5.8mΩ@10V 1 N-channel N-Channel DFN-5(6x5) Single FETs, MOSFETs RoHS
DFN-5(6x5)ROHS CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS4C09NCT1G
- Store part #
- C34888776
- Package / case
- DFN-5(6x5)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
350 in stock
#C34888776
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.73 | ₹61.73 |
| 10+ | ₹60.30 | ₹603.00 |
| 30+ | ₹59.48 | ₹1,784.40 |
| 100+ | ₹58.66 | ₹5,866.00 |
1 × ₹61.73
₹61.73
excl. GST
₹72.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS4C09NCT1G
₹61.73 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 610pF
- Ciss-Input Capacitance
- 1.252nF
- Pd - Power Dissipation
- 25.5W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 52A
- Reverse Transfer Capacitance (Crss)
- 126pF
- RDS(on)
- 5.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22.2nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
Applications
- CPU power supply
- DC-DC converter
Key features
- Low on-resistance RDS(on) for minimized conduction losses
- Low capacitance for minimized drive losses
- Optimized gate charge for minimized switching losses
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
