onsemiDatasheet (PDF)

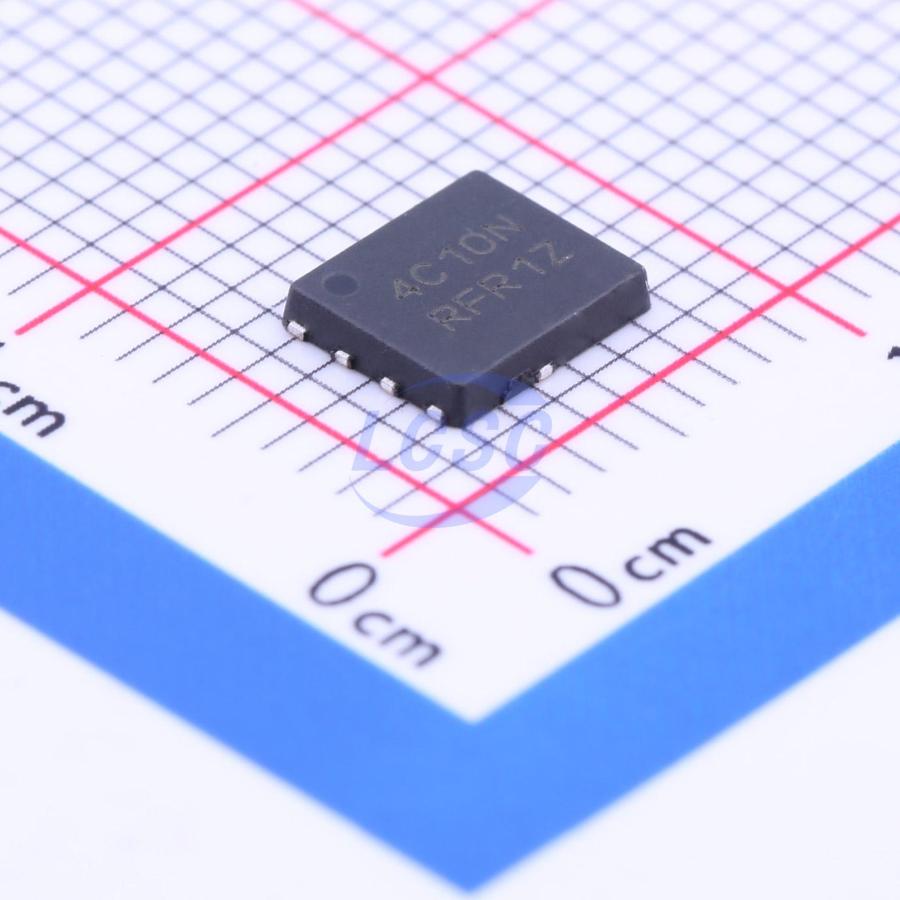

NTMFS4C10NT1G
N-Channel 30V 46A 23.6W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 30V 46A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS4C10NT1G
- Store part #
- C96242
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C96242
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.46 | ₹118.46 |
| 10+ | ₹96.76 | ₹967.60 |
| 30+ | ₹85.92 | ₹2,577.60 |
| 100+ | ₹75.29 | ₹7,529.00 |
| 500+ | ₹68.99 | ₹34,495.00 |
| 1,500+ | ₹65.53 | ₹98,295.00 |
1 × ₹118.46
₹118.46
excl. GST
₹139.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS4C10NT1G
₹118.46 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 574pF
- Ciss-Input Capacitance
- 987pF
- Pd - Power Dissipation
- 23.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 46A
- Reverse Transfer Capacitance (Crss)
- 162pF
- RDS(on)
- 6.95mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.174 g
Overview
- Lead-free product purchased - Advanced trench
Applications
- CPU power supply
- DC-DC converter
Key features
- Low R<sub>DS(on)</sub> to minimize conduction losses
- Low capacitance to minimize driving losses
- Optimized gate charge to minimize switching losses
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DON60N03#C41384266DOINGTER · DFN5x6-8 | DOINGTER | DFN5x6-8 | 570 | ₹14.28 · 570 in stock | View |
| NTMFS4C028NT1G#C604424onsemi · SO-8-FL-5.8mm | onsemi | SO-8-FL-5.8mm | 10 | ₹147.67 · 10 in stock | View | |
 | DON60N04#C42420909DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 1,310 | ₹19.32 · 1,310 in stock | View |
 | BSC059N04LS6(TOKMAS)#C48586465Tokmas · DFN-8(5x6) | Tokmas | DFN-8(5x6) | 3,765 | ₹31.63 · 3,765 in stock | View |
 | FH3055GS#C5159034XIN FEI HONG · PDFN-8L(5x6) | XIN FEI HONG | PDFN-8L(5x6) | 4,770 | ₹21.91 · 4,770 in stock | View |
