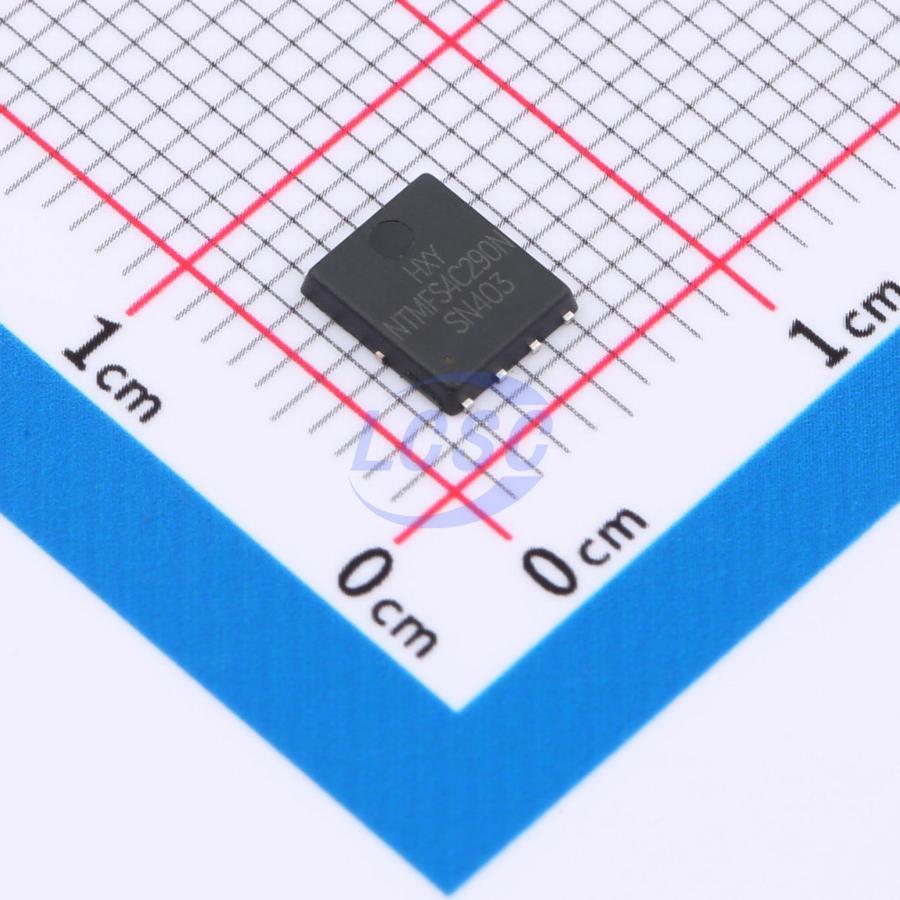

NTMFS4C290N-HXY
N-Channel 30V 80A 37W Surface Mount DFN-8(5x6)
DFN-8(5x6)ROHS CompliantActive
MOSFET N-CH 30V 80A DFN-8(5x6)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTMFS4C290N-HXY
- Store part #
- C22366426
- Package / case
- DFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C22366426
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.00 | ₹155.00 |
| 50+ | ₹24.83 | ₹1,241.50 |
| 150+ | ₹22.19 | ₹3,328.50 |
| 500+ | ₹18.88 | ₹9,440.00 |
| 2,500+ | ₹17.41 | ₹43,525.00 |
| 5,000+ | ₹16.54 | ₹82,700.00 |
5 × ₹31.00
₹155.00
excl. GST
₹182.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS4C290N-HXY
₹155.00 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 310pF
- Current - Continuous Drain(Id)
- 80A
- Pd - Power Dissipation
- 37W
- RDS(on)
- 4.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.128 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFH7914TRPBF-HXY#C20606224HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 80 | ₹48.21 · 80 in stock | View |
 | FDMS8680-HXY#C22366422HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 8 | ₹56.17 · 8 in stock | View |
 | IRFH7914PBF-HXY#C22366423HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 175 | ₹48.58 · 175 in stock | View |
 | NTMFS4926N-HXY#C22366424HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 5 | ₹27.10 · 5 in stock | View |
 | NTMFS4927N-HXY#C22366425HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 200 | ₹31.00 · 200 in stock | View |
