HXY MOSFETDatasheet (PDF)

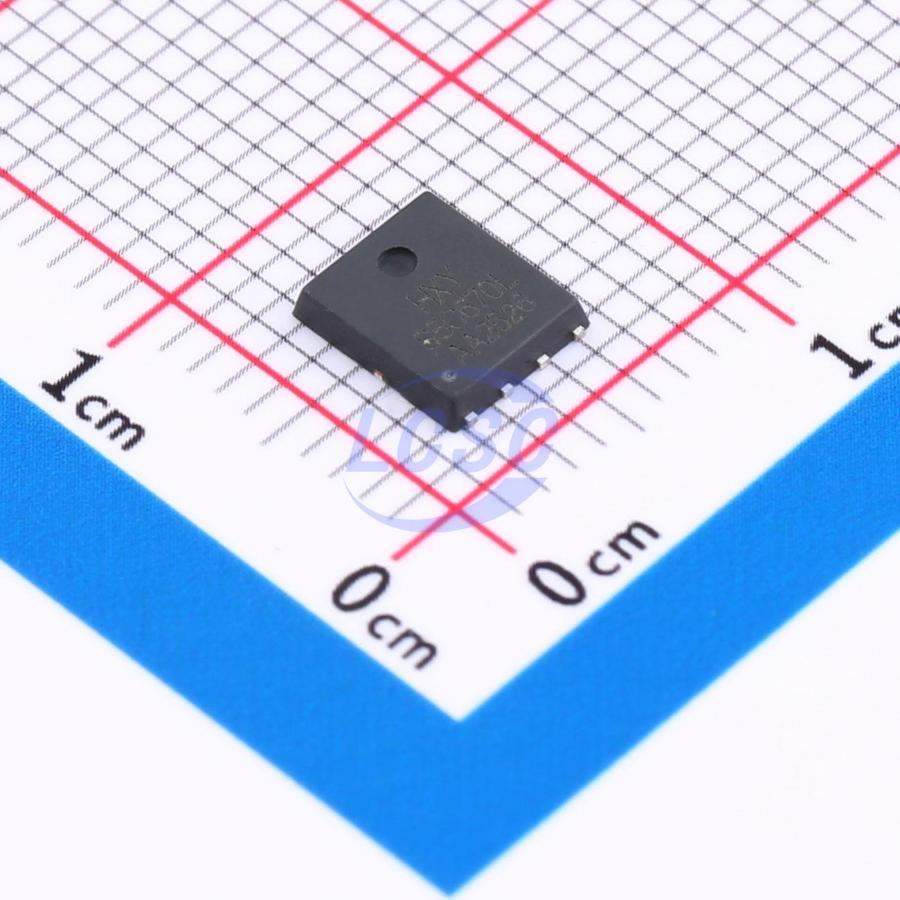

NTMFS5C670NLT1G-HXY
60V 80A 108W 6mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
MOSFET 60V 80A DFN-8L(5x6)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTMFS5C670NLT1G-HXY
- Store part #
- C49420414
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
321 in stock
#C49420414
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.91 | ₹65.91 |
| 10+ | ₹52.91 | ₹529.10 |
| 30+ | ₹47.27 | ₹1,418.10 |
| 100+ | ₹40.34 | ₹4,034.00 |
| 500+ | ₹37.08 | ₹18,540.00 |
| 1,000+ | ₹35.13 | ₹35,130.00 |
1 × ₹65.91
₹65.91
excl. GST
₹77.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS5C670NLT1G-HXY
₹65.91 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 286pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 4.136nF
- Pd - Power Dissipation
- 108W
- Reverse Transfer Capacitance (Crss)
- 257pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.137 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HCSD18563Q5A#C42401095HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 65 | ₹74.15 · 65 in stock | View |
 | HDMNH6008SPSQ13#C42401295HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 306 | ₹99.49 · 306 in stock | View |
 | HBSC065N06LS5#C42401318HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 211 | ₹102.35 · 211 in stock | View |
 | HBSC066N06NSATMA1#C42401346HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 38 | ₹89.53 · 38 in stock | View |
 | NTMFS5C670NT1G-HXY#C49420415HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 53 | ₹94.53 · 53 in stock | View |
