HXY MOSFETDatasheet (PDF)

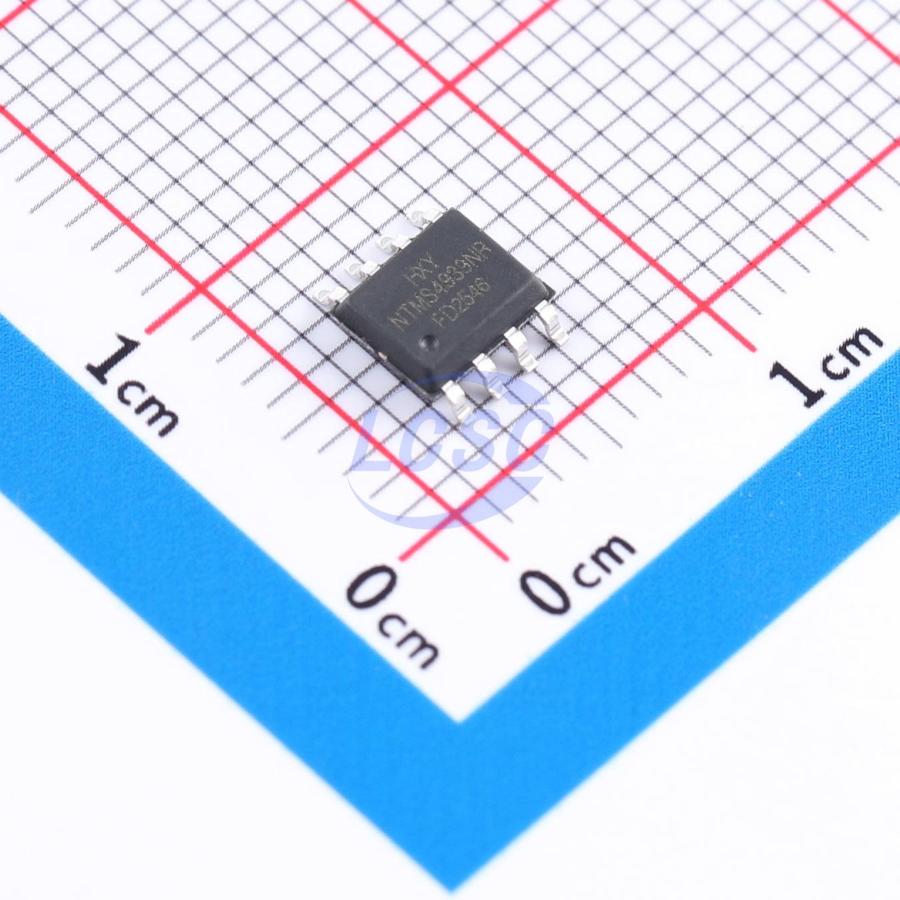

NTMS4939NR2G-HXY
15W 30V 15A 8mΩ@10V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTMS4939NR2G-HXY
- Store part #
- C53263304
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
68 in stock
#C53263304
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.22 | ₹93.22 |
| 10+ | ₹76.47 | ₹764.70 |
| 30+ | ₹68.08 | ₹2,042.40 |
| 100+ | ₹59.71 | ₹5,971.00 |
| 500+ | ₹54.77 | ₹27,385.00 |
| 1,000+ | ₹52.19 | ₹52,190.00 |
1 × ₹93.22
₹93.22
excl. GST
₹110.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTMS4939NR2G-HXY
₹93.22 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 147pF
- Ciss-Input Capacitance
- 983pF
- Pd - Power Dissipation
- 15W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 109pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.124 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI4420BDY-T1-E3-HXY#C53262990HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 90 | ₹40.25 · 90 in stock | View |
 | SI4420BDY-T1-GE3-HXY#C53263019HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 98 | ₹146.69 · 98 in stock | View |
 | BSO083N03MSGXUMA1-HXY#C53263090HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 90 | ₹40.79 · 90 in stock | View |
 | FDS6670S-HXY#C53263120HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 90 | ₹41.22 · 90 in stock | View |
 | AO4708#C53263190HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 80 | ₹46.34 · 80 in stock | View |
