VBsemi ElecDatasheet (PDF)

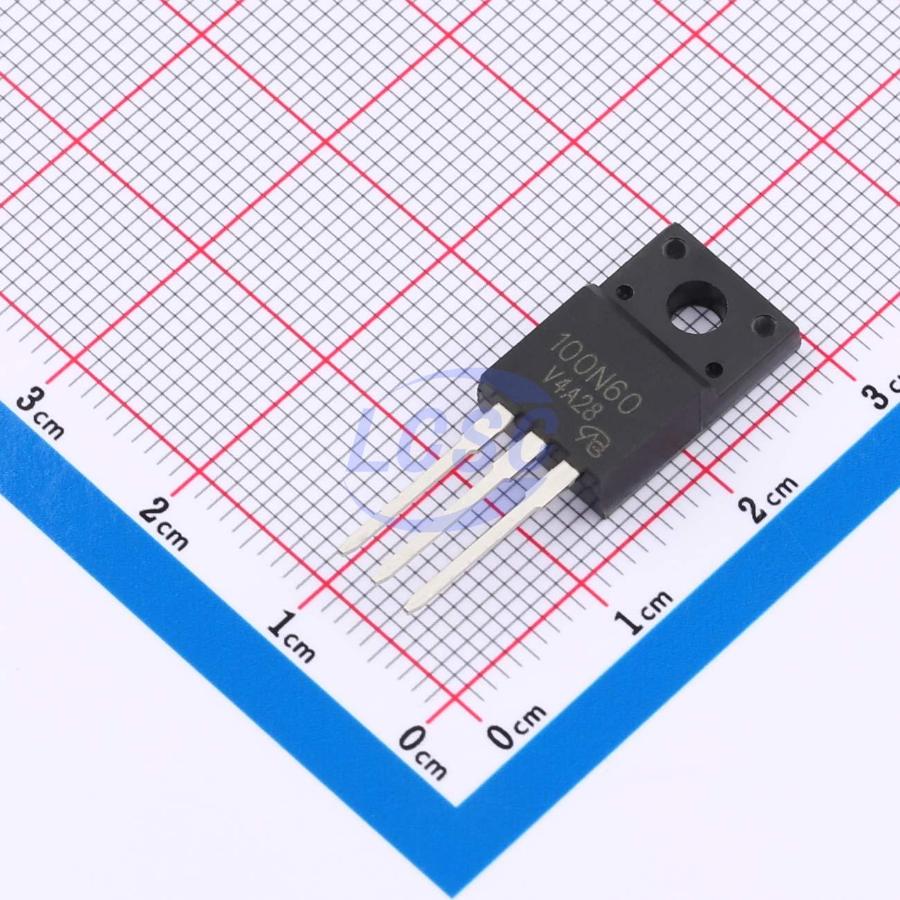

NTPF100N60S5H-VB
N-Channel 600V 31A 180W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 600V 31A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTPF100N60S5H-VB
- Store part #
- C22357042
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357042
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹531.86 | ₹531.86 |
| 10+ | ₹454.77 | ₹4,547.70 |
| 50+ | ₹408.98 | ₹20,449.00 |
| 100+ | ₹362.55 | ₹36,255.00 |
| 500+ | ₹341.14 | ₹1,70,570.00 |
| 1,000+ | ₹331.46 | ₹3,31,460.00 |
1 × ₹531.86
₹531.86
excl. GST
₹627.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
NTPF100N60S5H-VB
₹531.86 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 31A
- Ciss-Input Capacitance
- 3.4nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 90mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 62nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.18 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Ultra-fast body diode
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPA60R099P7-VB#C22357040VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 1 | ₹531.86 · 1 in stock | View |
 | SiHF35N60E-VB#C22357041VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹531.86 · 5 in stock | View |
 | STF43N60DM2-VB#C22357043VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹531.86 · 5 in stock | View |
 | AOTF42S60-VB#C22357044VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹531.86 · 5 in stock | View |
 | VBMB16R31SFD#C22357353VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹531.86 · 5 in stock | View |
