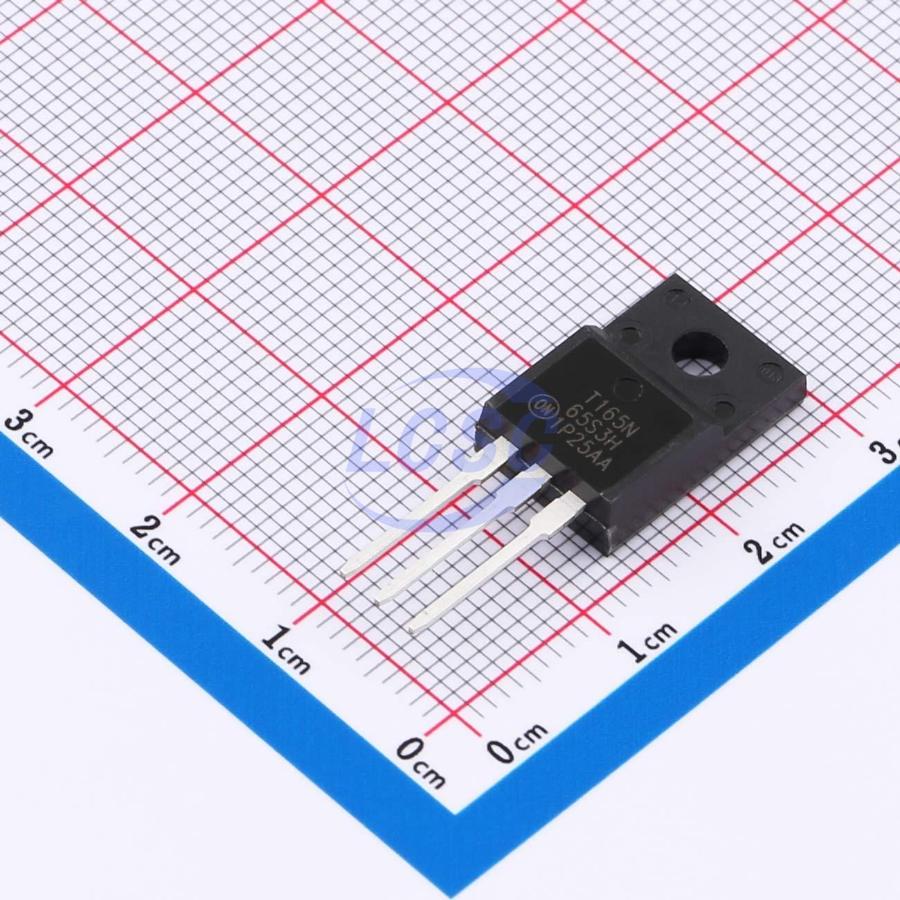

NTPF165N65S3H
N-Channel 650V 19A 33W Through Hole TO-220F
TO-220FROHS3 CompliantActive
MOSFET N-CH 650V 19A TO-220F
- Manufacturer
- onsemi
- Manufacturer part #
- NTPF165N65S3H
- Store part #
- C2902184
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2902184
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹814.40 | ₹814.40 |
| 10+ | ₹802.80 | ₹8,028.00 |
| 30+ | ₹795.06 | ₹23,851.80 |
| 100+ | ₹787.32 | ₹78,732.00 |
1 × ₹814.40
₹814.40
excl. GST
₹960.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
NTPF165N65S3H
₹814.40 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 27pF
- Ciss-Input Capacitance
- 1.808nF
- Pd - Power Dissipation
- 33W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 19A
- Reverse Transfer Capacitance (Crss)
- 9.2pF
- RDS(on)
- 165mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.91 g
Overview
SUPERFET III MOSFET is ON Semiconductor’s brand-new high voltage super-junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on-resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provides superior switching performance, and withstand extreme dv/dt rate. Consequently, SUPERFET III MOSFET FAST series helps minimize various power systems and improve system efficiency.
Applications
- Computing / Display Power Supplies
- Telecom / Server Power Supplies
- Industrial Power Supplies
- Lighting / Charger / Adapter
Key features
- 700 V (TJ = 150°C)
- Typ. RDS(on) = 132 mΩ
- Ultra Low Gate Charge (Typ. Qg = 35 nC)
- Low Effective Output Capacitance (Typ. Coss(eff.) = 326 pF)
- 100% Avalanche Tested
- These Devices are Pb-Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCE65T180F#C216788NCE · TO-220F | NCE | TO-220F | 11 | ₹331.23 · 11 in stock | View |
 | RS65R190BF#C49317665REASUNOS · TO-220F | REASUNOS | TO-220F | 46 | ₹130.53 · 46 in stock | View |
 | CMF65R190#C7545153Cmos · TO-220F | Cmos | TO-220F | 165 | ₹162.62 · 165 in stock | View |
| BMF65R190F#C54741141BORN · TO-220F | BORN | TO-220F | 500 | ₹150.00 · 500 in stock | View | |
 | NCE70T180F#C502888NCE · TO-220F | NCE | TO-220F | 44 | ₹304.36 · 44 in stock | View |
