onsemiDatasheet (PDF)

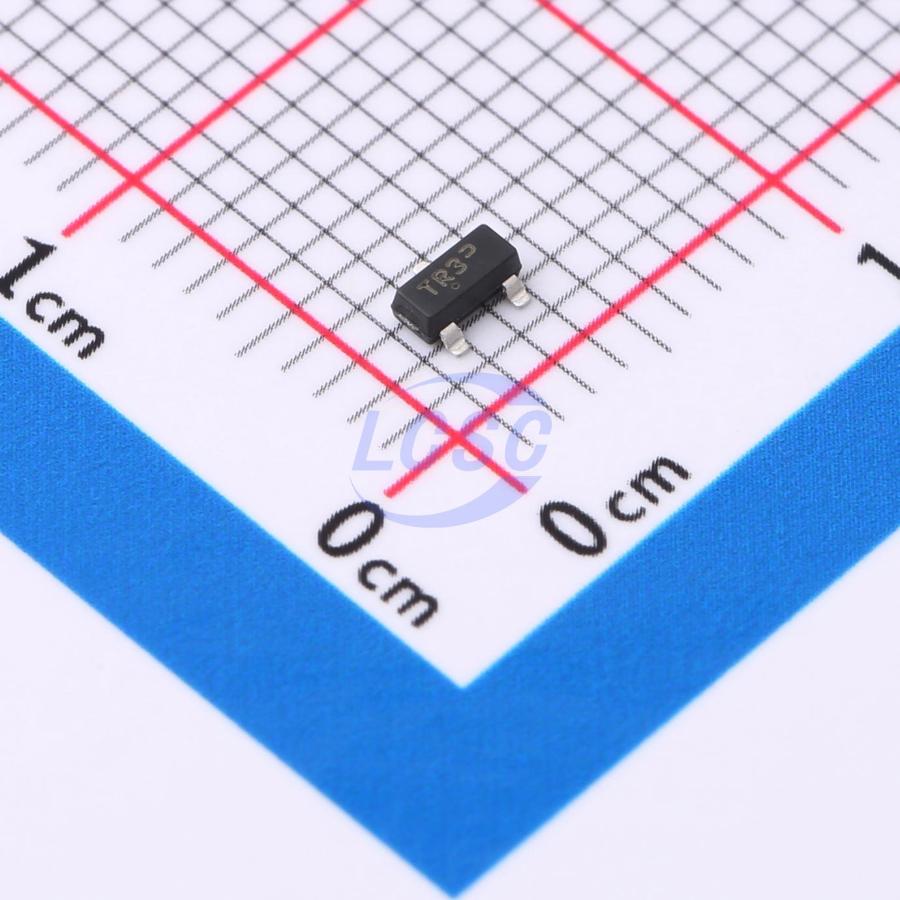

NTR4503NT1G
N-Channel 30V 2A 0.73W Surface Mount SOT-23
SOT-23ROHS3 CompliantSold out at source
MOSFET N-CH 30V 2A SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- NTR4503NT1G
- Store part #
- C3280169
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C3280169
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.14 | ₹235.70 |
| 50+ | ₹39.66 | ₹1,983.00 |
| 150+ | ₹36.46 | ₹5,469.00 |
| 500+ | ₹32.47 | ₹16,235.00 |
| 2,500+ | ₹30.68 | ₹76,700.00 |
| 5,000+ | ₹29.62 | ₹1,48,100.00 |
5 × ₹47.14
₹235.70
excl. GST
₹278.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTR4503NT1G
₹235.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 75pF
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 730mW
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 2A
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 140mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Applications
- DC−DC Conversion
- Load/Power Switch for Portables
- Load/Power Switch for Computing
Key features
- Leading Planar Technology for Low Gate Charge / Fast Switching
- 4.5 V Rated for Low Voltage Gate Drive
- SOT−23 Surface Mount for Small Footprint (3 x 3 mm)
- NV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO3404A#C7422631FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 1,420 | ₹5.19 · 1,420 in stock | View |
 | SI2306#C181089Guangdong Hottech · SOT-23 | Guangdong Hottech | SOT-23 | 10,060 | ₹4.95 · 10,060 in stock | View |
 | SI2306-TP#C2975463MCC · SOT-23 | MCC | SOT-23 | 2,190 | ₹11.09 · 2,190 in stock | View |
 | SI2306#C5243893JUXING · SOT-23 | JUXING | SOT-23 | 1,940 | ₹4.78 · 1,940 in stock | View |
 | SSM3K318R,LF#C146333TOSHIBA · SOT-23F | TOSHIBA | SOT-23F | 23,600 | ₹14.20 · 23,600 in stock | View |
