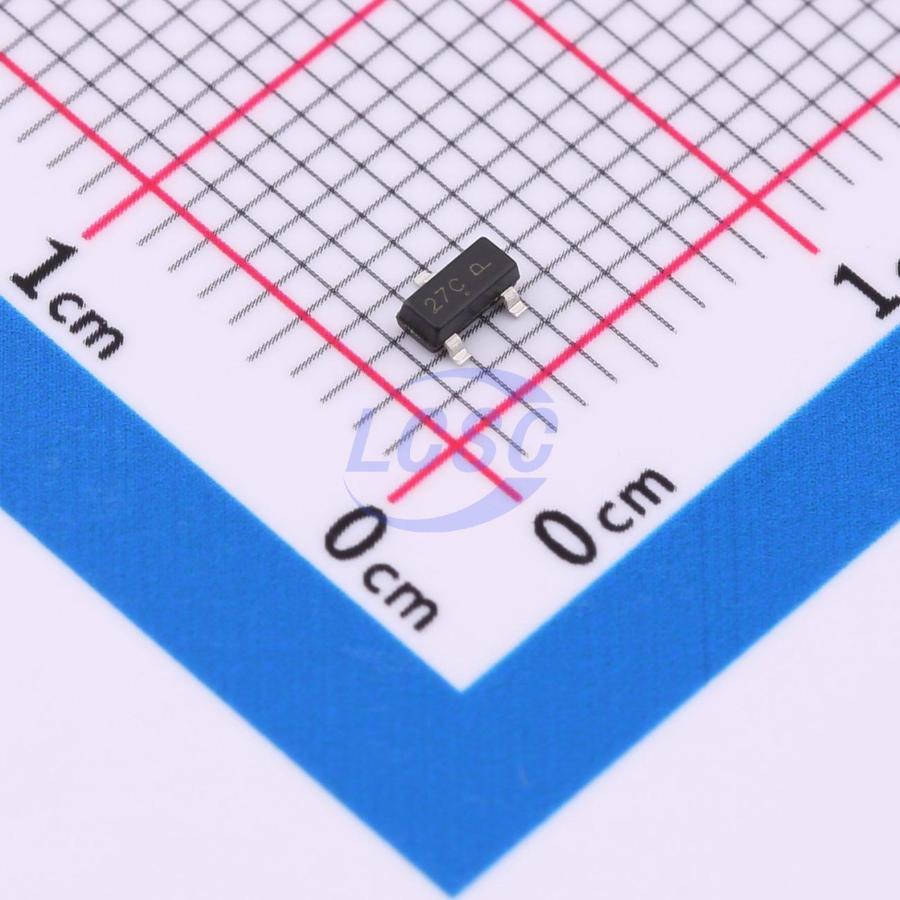

NUP1105LT1G
45VC Clamp 7A@8/20us Ipp SOT-23
SOT-23RoHSActive
45VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NUP1105LT1G
- Store part #
- C20617291
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,670 in stock
#C20617291
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.71 | ₹67.10 |
| 100+ | ₹5.27 | ₹527.00 |
| 300+ | ₹4.55 | ₹1,365.00 |
| 3,000+ | ₹4.01 | ₹12,030.00 |
| 6,000+ | ₹3.57 | ₹21,420.00 |
| 9,000+ | ₹3.36 | ₹30,240.00 |
10 × ₹6.71
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP1105LT1G
₹67.10 for 10 + GST
Specifications
- Clamping Voltage
- 45V
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 26.7V
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- 350W peak pulse power(8/20μs)
- Protects one bi-directional or two uni-directional lines
- Ultra low leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Complies with following standards: IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV; IEC61000 - 4 - 4 (EFT) 40A (5/50ns); IEC61000 - 4 - 5 (Lightning) 7A (8/20μs)
- RoHS Compliant
