TECH PUBLICDatasheet (PDF)

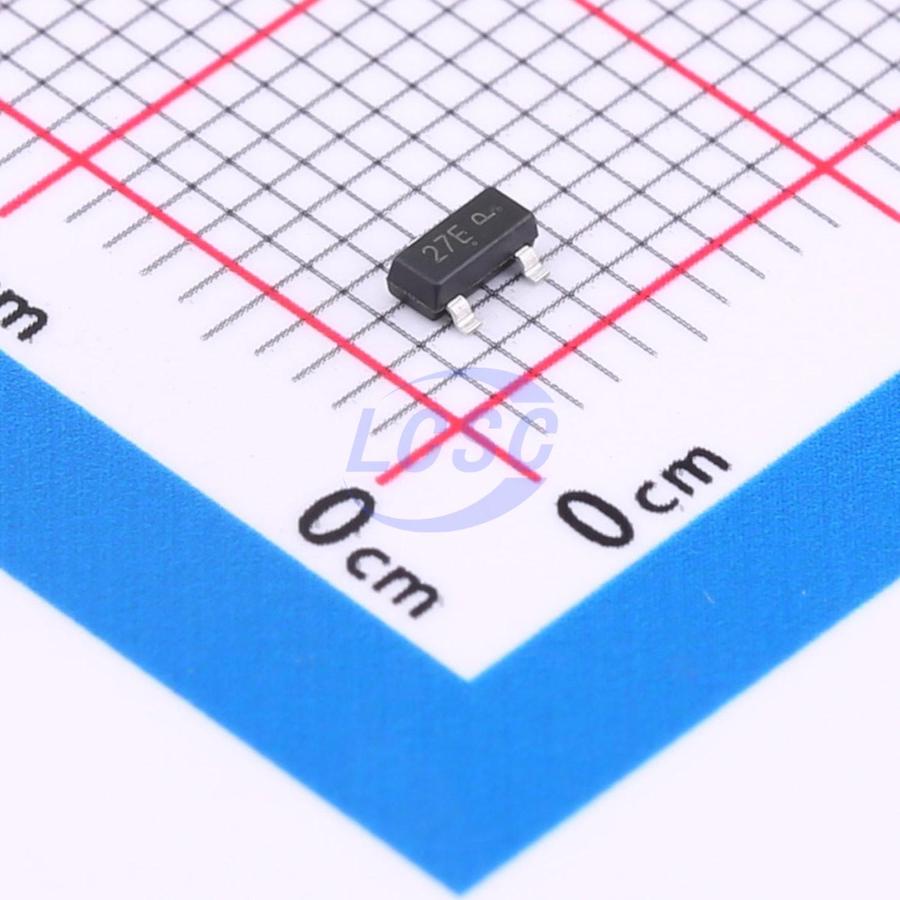

NUP2105L
nan
SOT-23RoHSActive
24VWM 40VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NUP2105L
- Store part #
- C19829391
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C19829391
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.79 | ₹67.90 |
| 100+ | ₹5.36 | ₹536.00 |
| 300+ | ₹4.64 | ₹1,392.00 |
| 3,000+ | ₹4.10 | ₹12,300.00 |
| 6,000+ | ₹3.66 | ₹21,960.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
10 × ₹6.79
₹67.90
excl. GST
₹80.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP2105L
₹67.90 for 10 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 140W@8/20us
- Voltage - Breakdown
- 26.7V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- Industrial Controls
- Personal Digital Assistants
- Notebooks and Handhelds
- CAN Bus Protection
- Automotive Appllcatrons
Key features
- Low operating voltage: 24V
- Ultra low capacitance: 18pF
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- 3-pin leadless package
- These are Pb-Free Devices
- Response Time is Typically <1 ns
