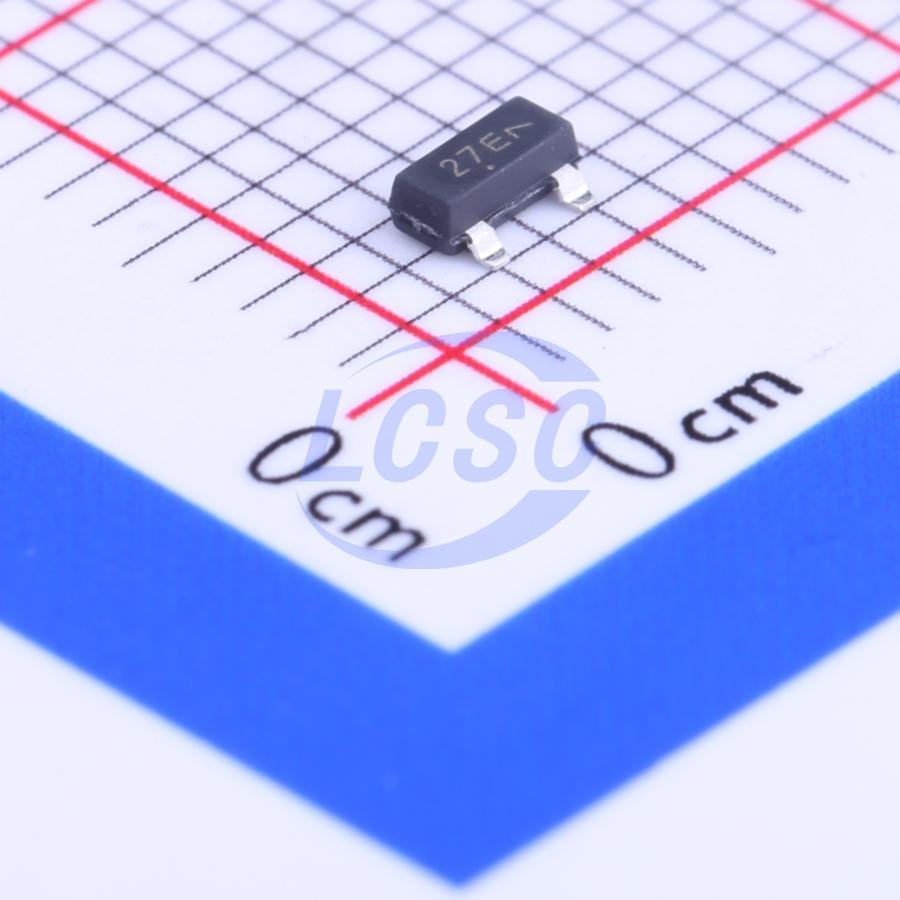

NUP2105LT1G

The SZ/NUP2105L has been designed to protect the CAN transceiver in high−speed and fault tolerant networks from ESD and other harmful transient voltage events. This device provides bidirectional protection for each data line with a single compact SOT−23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements.

Applications

• Industrial Control Networks
• Smart Distribution Systems (SDS)
• DeviceNet
• Automotive Networks
• Low and High−Speed CAN
• Fault Tolerant CAN

Key features

• 350 W Peak Power Dissipation per Line (8 x 20 sec Waveform)
• Low Reverse Leakage Current (<100 nA)
• Low Capacitance High−Speed CAN Data Rates
• IEC Compatibility:
• IEC 61000−4−2 (ESD): Level 4
• IEC 61000−4−4 (EFT): 40 A – 5/50 ns
• IEC 61000−4−5 (Lighting) 8.0 A (8/20 μs)
• ISO 7637−1, Nonrepetitive EMI Surge Pulse 2, 9.5 A (1 x 50 μs)
• ISO 7637−3, Repetitive Electrical Fast Transient (EFT) EMI Surge Pulses, 50 A (5 x 50 ns)
• Flammability Rating UL 94 V-0
• AEC−Q101 Qualified and PPAP Capable
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
• Pb−Free Packages are Available
