TECH PUBLICDatasheet (PDF)

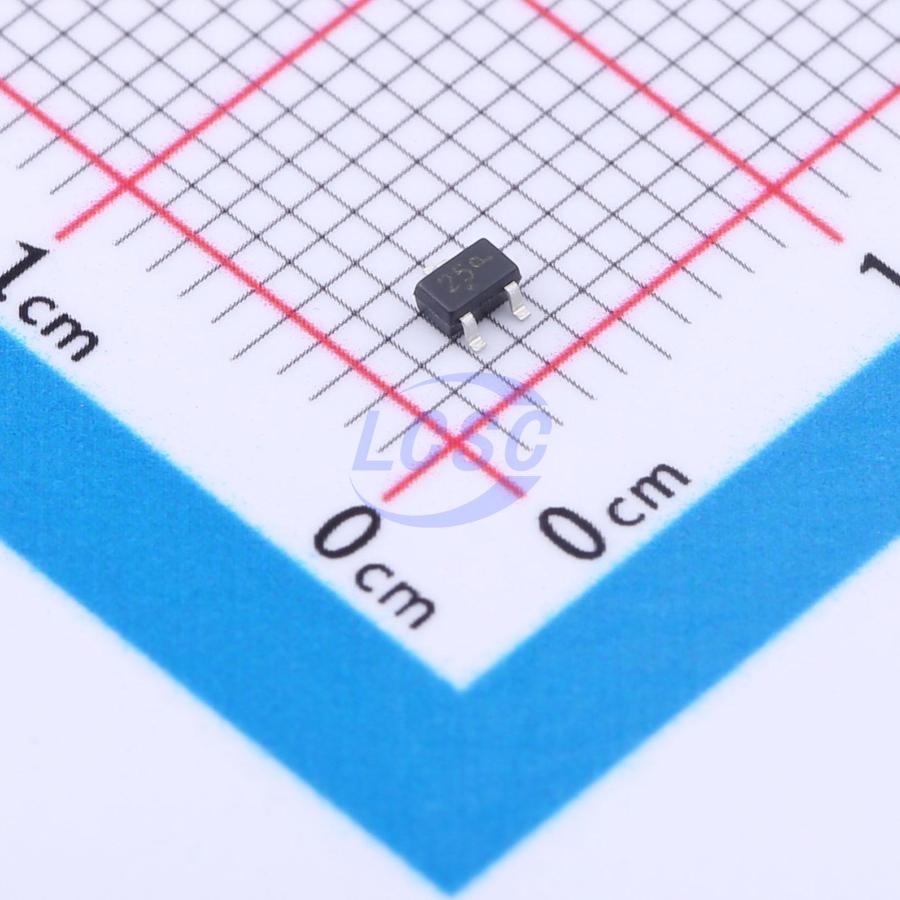

NUP2125WTT1G
30VC Clamp 4A@8/20us Ipp SOT-323
SOT-323RoHSActive
24VWM 30VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NUP2125WTT1G
- Store part #
- C2905629
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,060 in stock
#C2905629
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.17 | ₹95.85 |
| 50+ | ₹15.73 | ₹786.50 |
| 150+ | ₹14.00 | ₹2,100.00 |
| 500+ | ₹12.71 | ₹6,355.00 |
| 3,000+ | ₹9.43 | ₹28,290.00 |
| 6,000+ | ₹8.92 | ₹53,520.00 |
5 × ₹19.17
₹95.85
excl. GST
₹113.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP2125WTT1G
₹95.85 for 5 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 28V
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- CAN Bus Protection
- Automotive Applications
Key features
- Ultra low leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 4A (8/20μs)
- RoHS Compliant
