onsemiDatasheet (PDF)

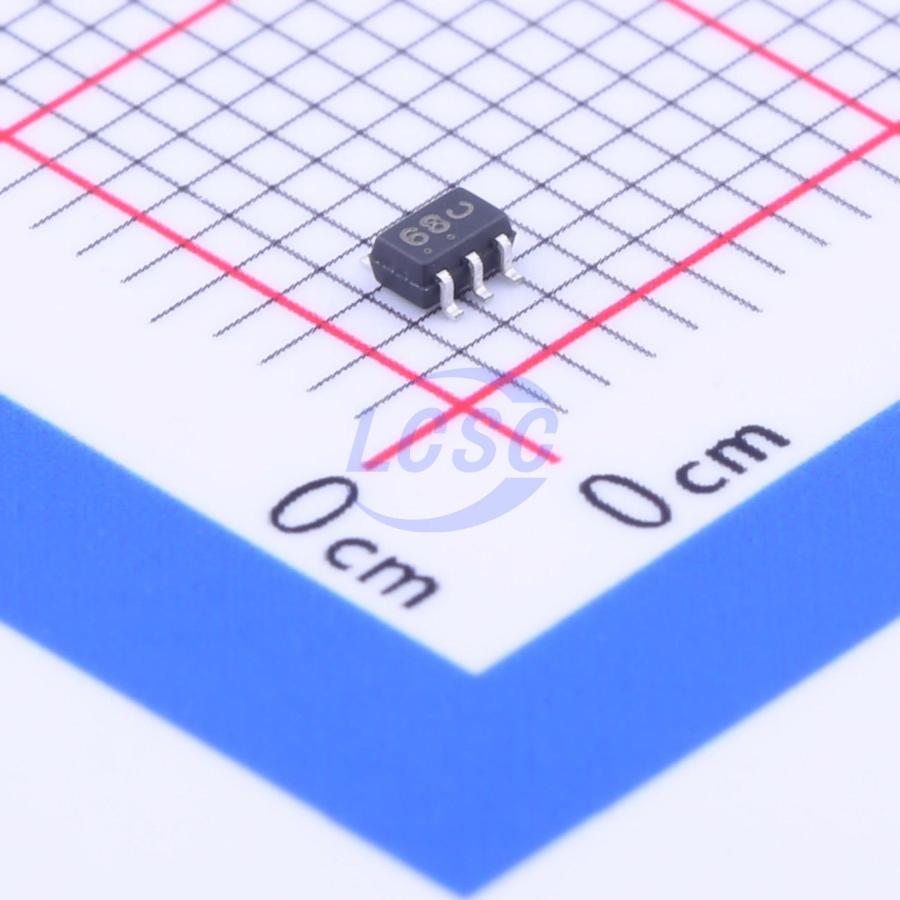

NUP2301MW6T1G
70V Bidirectional SC-88 TVS Diodes RoHS
SC-88ROHS3 CompliantActive
Low Capacitance Diode Array for EsD Protection in Two Data Lines
- Manufacturer
- onsemi
- Manufacturer part #
- NUP2301MW6T1G
- Store part #
- C242265
- Package / case
- SC-88
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
284 in stock
#C242265
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.17 | ₹72.17 |
| 10+ | ₹56.03 | ₹560.30 |
| 30+ | ₹49.06 | ₹1,471.80 |
| 100+ | ₹40.34 | ₹4,034.00 |
| 500+ | ₹36.63 | ₹18,315.00 |
| 1,000+ | ₹34.24 | ₹34,240.00 |
1 × ₹72.17
₹72.17
excl. GST
₹85.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP2301MW6T1G
₹72.17 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Number of Channels
- 2
- Voltage - Breakdown
- 70V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2.5uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.029 g
Overview
NUP2301MW6T1G is a micro−integrated device designed to provide protection for sensitive components from possible harmful electrical transients; for example, ESD (electrostatic discharge).
Applications
- T1/E1 Secondary IC Protection
- T3/E3 Secondary IC Protection
- HDSL, IDSL Secondary IC Protection
- Video Line Protection
- Microcontroller Input Protection
- Base Stations
- I²C Bus Protection
Key features
- Low Capacitance (2.0 pf Maximum Between I/O Lines)
- Single Package Integration Design
- Provides ESD Protection for JEDEC Standards JESD22 Machine Model = Class C Human Body Model = Class 3B
- Protection for IEC61000−4−2 (Level 4) 8.0 kV (Contact) 15 kV (Air)
- Ensures Data Line Speed and Integrity
- Fewer Components and Less Board Space
- Direct the Transient to Either Positive Side or to the Ground
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- This is a Pb−Free Device
