onsemiDatasheet (PDF)

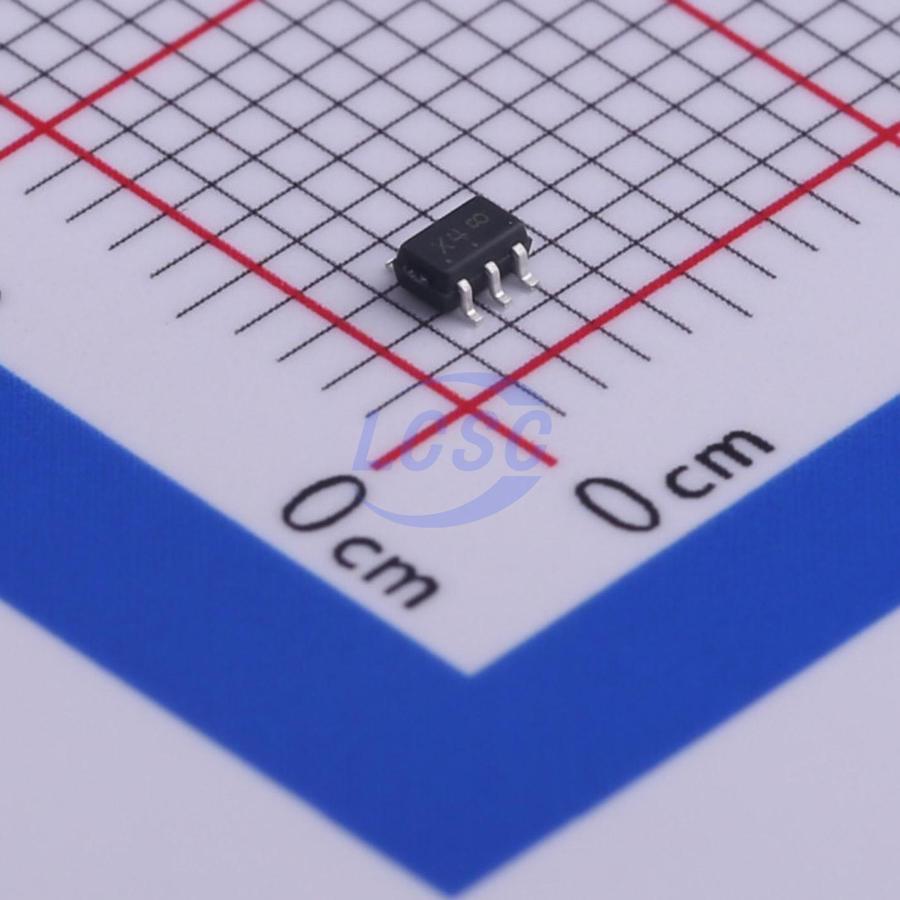

NUP4114UCW1T2G
10VC Clamp 12A@8/20us Ipp ESD DIODE SC-88-6
SC-88-6ROHS3 CompliantActive
ESD DIODE 5.5VWM 10VC SC-88-6
- Manufacturer
- onsemi
- Manufacturer part #
- NUP4114UCW1T2G
- Store part #
- C463643
- Package / case
- SC-88-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,300 in stock
#C463643
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹59.76 | ₹298.80 |
| 50+ | ₹47.30 | ₹2,365.00 |
| 150+ | ₹41.95 | ₹6,292.50 |
| 500+ | ₹35.28 | ₹17,640.00 |
| 3,000+ | ₹32.32 | ₹96,960.00 |
| 6,000+ | ₹30.55 | ₹1,83,300.00 |
5 × ₹59.76
₹298.80
excl. GST
₹352.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP4114UCW1T2G
₹298.80 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Voltage - Breakdown
- 5.5V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The NUP4114 ESD protection diode array is designed to protect high speed data lines from ESD. Ultra−low capacitance and high level of ESD protection make these devices well suited for use in USB 2.0 high speed applications.
Applications
- LVDS
- USB 2.0 High Speed Data Line and Power Line Protection
- Digital Video Interface (DVI) and HDMI
- Gigabit Ethernet
- Monitors and Flat Panel Displays
- Notebook Computers
- communications systems
- computers
- computer peripherals
- high speed I/O data lines
Key features
- Low Clamping Voltage
- Low Capacitance (<0.6 pF Typical, I/O to GND)
- Low Leakage
- Response Time is Typically <1.0 ns
- IEC61000−4−2 Level 4 ESD Protection
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
