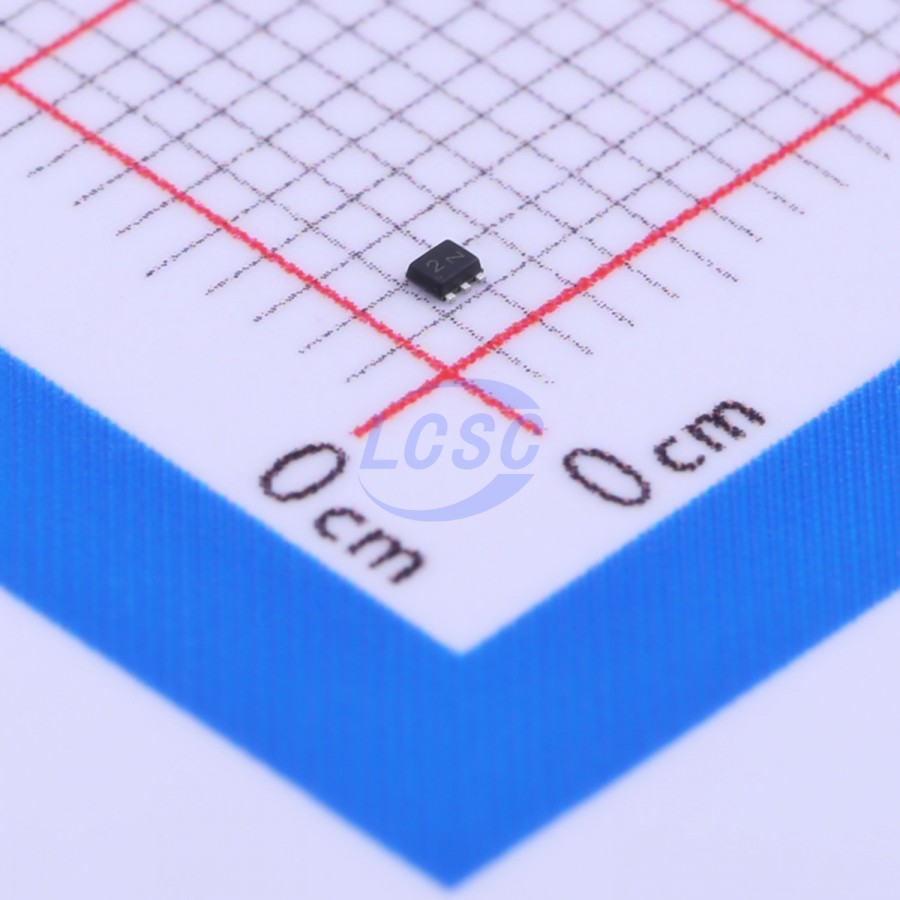

NUP412VP5T5G
nan
ESD DIODE 9VWM SOT-953
- Manufacturer
- onsemi
- Manufacturer part #
- NUP412VP5T5G
- Store part #
- C274626
- Package / case
- SOT-953
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C274626
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.03 | ₹90.15 |
| 50+ | ₹14.29 | ₹714.50 |
| 150+ | ₹12.41 | ₹1,861.50 |
| 500+ | ₹11.01 | ₹5,505.00 |
| 2,500+ | ₹9.87 | ₹24,675.00 |
| 5,000+ | ₹9.31 | ₹46,550.00 |
5 × ₹18.03
₹90.15
excl. GST
₹106.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NUP412VP5T5G
₹90.15 for 5 + GST
Specifications
- Peak Pulse Power Dissipation (Ppp)
- 18W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 12V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 9V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
This integrated surge protection device is designed for applications requiring transient overvoltage protection. It is intended to be used in sensitive equipment such as wireless headsets, PDAs, digital cameras, computers, printers, communication systems, and other applications. The integrated design provides very effective and reliable protection for four separate lines using only one package. This device is ideal for situations where board space is at a premium.
Applications
- Cellular and Portable Electronics
- Serial and Parallel Ports
- Microprocessor Based Equipment
- Notebooks, Desktops, Servers
Key features
- ESD Protection: IEC61000−4−2: Level 4
- Four Separate Unidirectional Configurations for Protection
- Low Leakage Current < 1 μA @ 9 V
- Small SOT−953 SMT Package
- Low Capacitance
- These are Pb-Free Devices
