TECH PUBLICDatasheet (PDF)

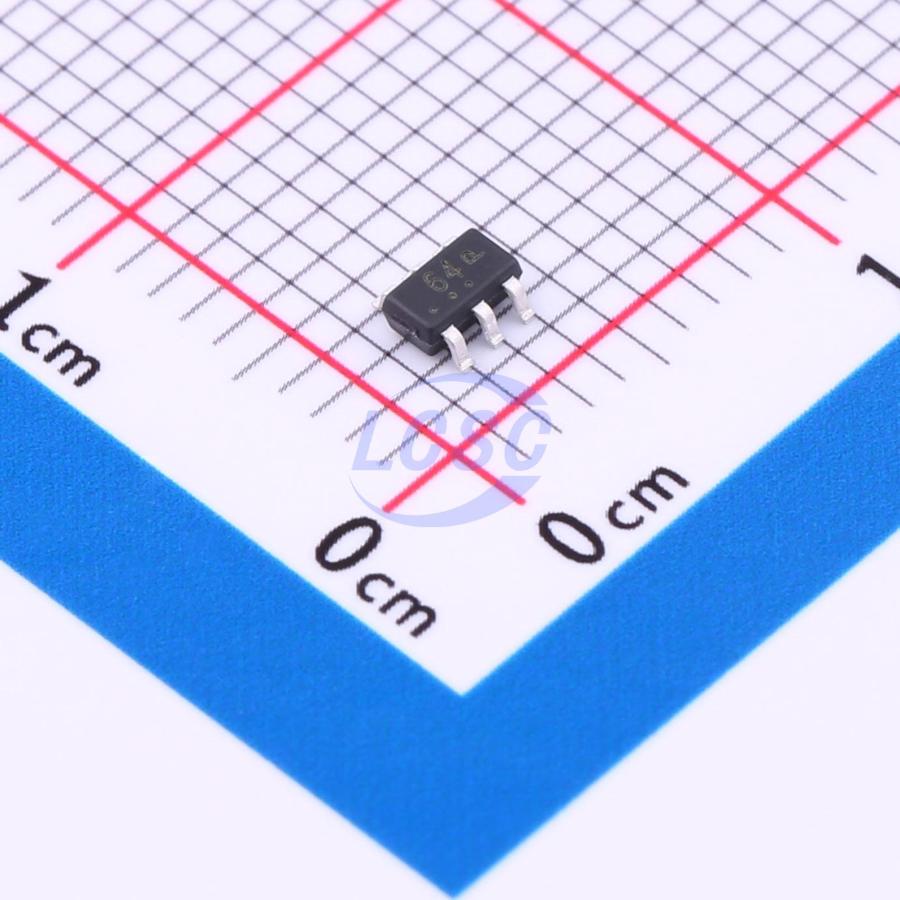

NUP4301MR6T1G
nan
SOT-23-6RoHSActive
ESD DIODE 70VWM SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NUP4301MR6T1G
- Store part #
- C5123900
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,725 in stock
#C5123900
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.08 | ₹190.40 |
| 50+ | ₹30.65 | ₹1,532.50 |
| 150+ | ₹27.48 | ₹4,122.00 |
| 500+ | ₹23.51 | ₹11,755.00 |
| 3,000+ | ₹19.33 | ₹57,990.00 |
| 6,000+ | ₹18.27 | ₹1,09,620.00 |
5 × ₹38.08
₹190.40
excl. GST
₹224.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP4301MR6T1G
₹190.40 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Number of Channels
- Four channels
- Voltage - Breakdown
- 85V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Applications
- USB 2.0 and Firewire Port Protection
- LAN/WLAN Access Point terminals
- Video Signal Line Protection
Key features
- Ultralow capacitance: 1pF Max I/O to GND
- Ultra low leakage: nA level
- Low operating voltage: 70V
- Uni-directional TVS Diode Array
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- ROHS Compliant
