onsemiDatasheet (PDF)

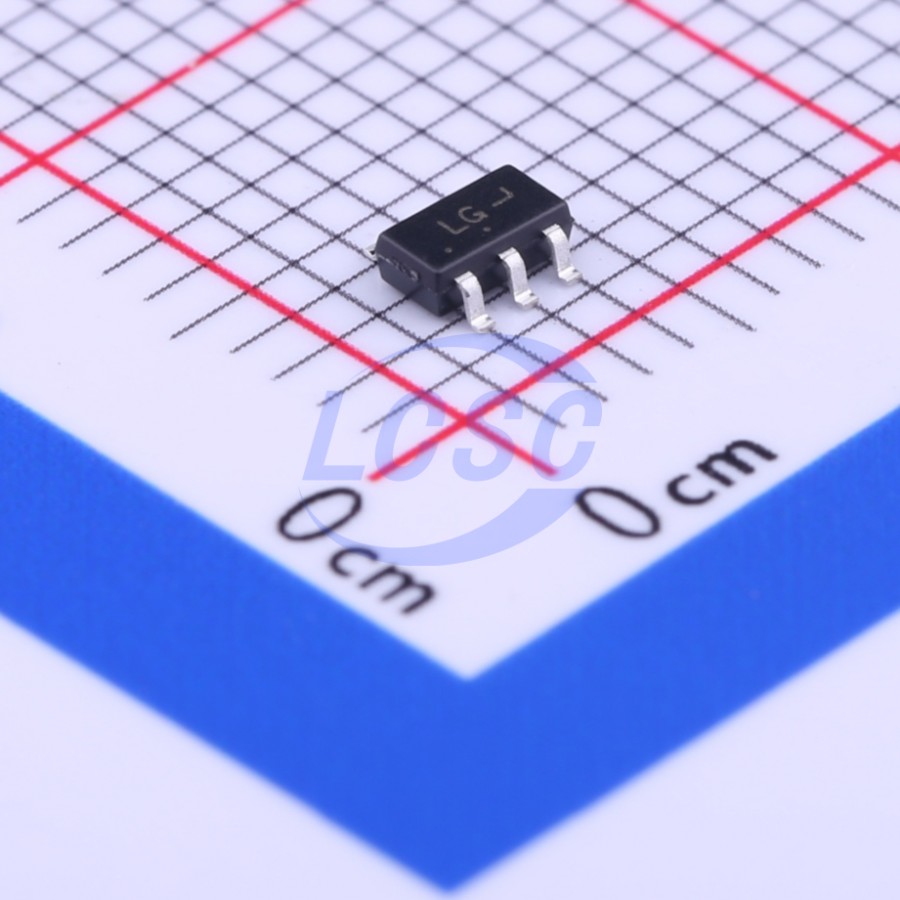

NUP4304MR6T1G
70V Bidirectional TSOP-6 TVS Diodes RoHS
TSOP-6ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NUP4304MR6T1G
- Store part #
- C233484
- Package / case
- TSOP-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
205 in stock
#C233484
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.22 | ₹201.10 |
| 50+ | ₹31.94 | ₹1,597.00 |
| 150+ | ₹28.38 | ₹4,257.00 |
| 500+ | ₹23.95 | ₹11,975.00 |
| 3,000+ | ₹21.98 | ₹65,940.00 |
| 6,000+ | ₹20.78 | ₹1,24,680.00 |
5 × ₹40.22
₹201.10
excl. GST
₹237.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP4304MR6T1G
₹201.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Number of Channels
- Four channels
- Voltage - Breakdown
- 70V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 50uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
NUP4304MR6 is a micro−integrated device designed to provide protection for sensitive components from possible harmful electrical transients; for example, ESD (electrostatic discharge).
Applications
- USB 1.1 and 2.0 Data Line Protection
- T1/E1 Secondary IC Protection
- T3/E3 Secondary IC Protection
- HDSL, IDSL Secondary IC Protection
- Video Line Protection
- Microcontroller Input Protection
- Base Stations
- I²C Bus Protection
- AEC−Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- This is a Pb−Free Device
Key features
- Low Capacitance (1.5 pF Maximum Between I/O Lines)
- Single Package Integration Design
- Provides ESD Protection for JEDEC Standards JESD22 Machine Model = Class C Human Body Model = Class 3B
- Protection for IEC61000−4−2 (Level 4) 8.0 kV (Contact) 15 kV (Air)
- Ensures Data Line Speed and Integrity
- Fewer Components and Less Board Space
- Direct the Transient to Either Positive Side or to the Ground
