onsemiDatasheet (PDF)

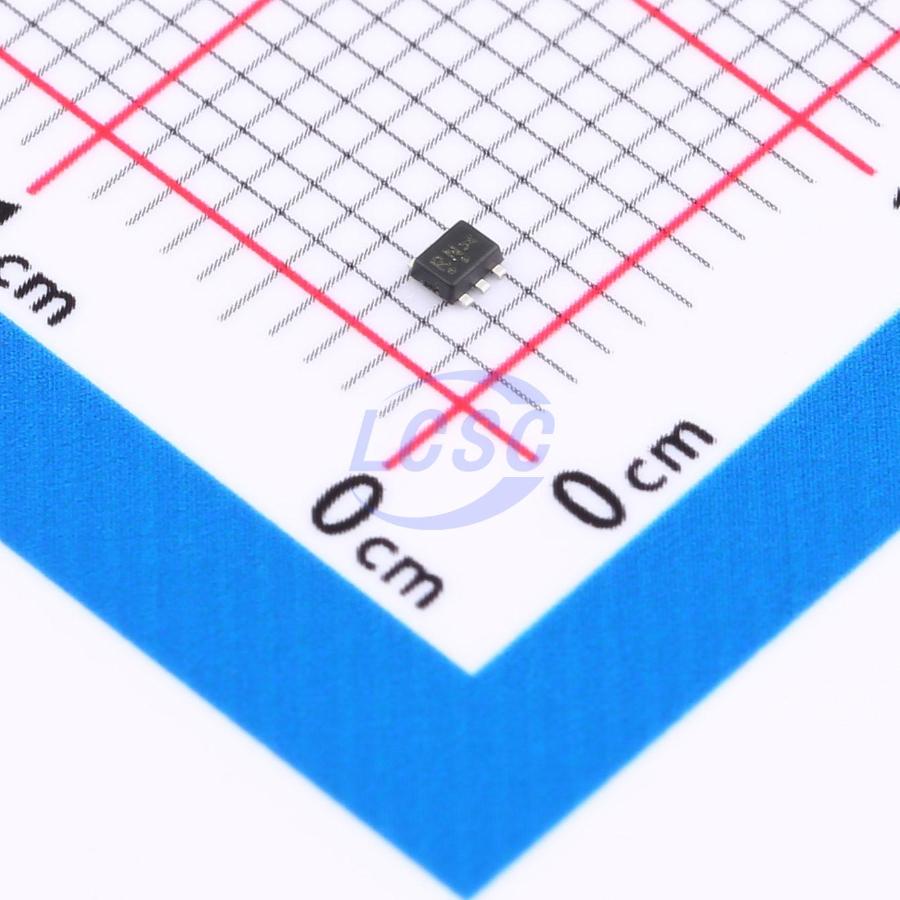

NUP5120X6T1G
nan
SOT-563ROHS3 CompliantActive
ESD DIODE 5VWM SOT-563
- Manufacturer
- onsemi
- Manufacturer part #
- NUP5120X6T1G
- Store part #
- C274627
- Package / case
- SOT-563
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,190 in stock
#C274627
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.01 | ₹190.05 |
| 50+ | ₹29.58 | ₹1,479.00 |
| 150+ | ₹25.97 | ₹3,895.50 |
| 500+ | ₹21.46 | ₹10,730.00 |
| 2,500+ | ₹19.45 | ₹48,625.00 |
| 4,000+ | ₹18.24 | ₹72,960.00 |
5 × ₹38.01
₹190.05
excl. GST
₹224.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NUP5120X6T1G
₹190.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Voltage - Breakdown
- 6.2V
- Number of Channels
- 5
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
This 5−line surge protection array is designed for application requiring surge protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as cell phones, portables, computers, printers and other applications. This device features a monolithic common anode design which protects five independent lines in a single SOT−563 package.
Applications
- Hand Held Portable Applications
- Serial and Parallel Ports
- Notebooks, Desktops, Servers
Key features
- Protects up to 5 Lines in a Single SOT−563 Package
- ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model.
- Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact)
- This is a Pb−Free Device
