TECH PUBLICDatasheet (PDF)

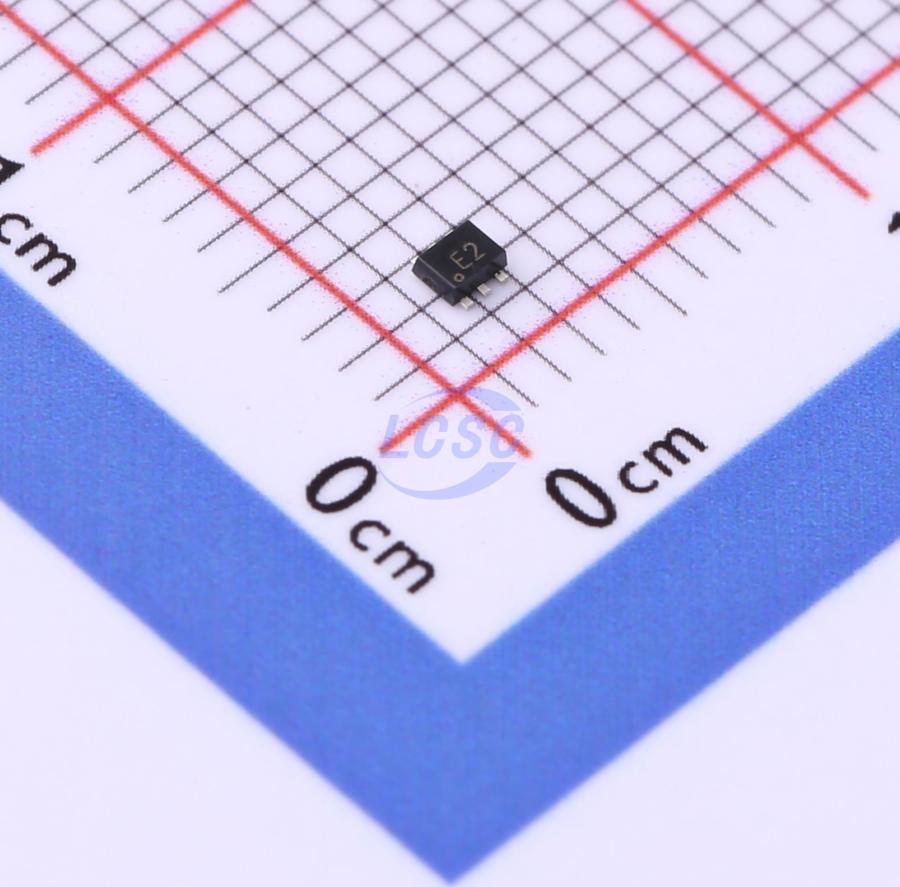

NUP5120X6T1G
14VC Clamp TVS DIODE SOT-563-6
SOT-563-6RoHSActive
TVS DIODE 5VWM 14VC SOT-563-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NUP5120X6T1G
- Store part #
- C3021132
- Package / case
- SOT-563-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
810 in stock
#C3021132
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.79 | ₹58.95 |
| 50+ | ₹9.50 | ₹475.00 |
| 150+ | ₹8.35 | ₹1,252.50 |
| 500+ | ₹7.49 | ₹3,745.00 |
| 2,500+ | ₹6.20 | ₹15,500.00 |
| 4,000+ | ₹5.86 | ₹23,440.00 |
5 × ₹11.79
₹58.95
excl. GST
₹69.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NUP5120X6T1G
₹58.95 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Peak Pulse Power Dissipation (Ppp)
- 40W@8/20us
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Applications
- USB 2.0 interface
- 10/100 Ethernet
- Personal digital assistants (PDA's)
- Notebooks, Desktops and Servers
- Portable instrumentation
- Digital cameras
Key features
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20 kV Contact discharge: ±18 kV IEC61000-4-5 (Lightning) 4A (8/20 μs) RoHS Compliant
- Lead Finish: NiPdAu
