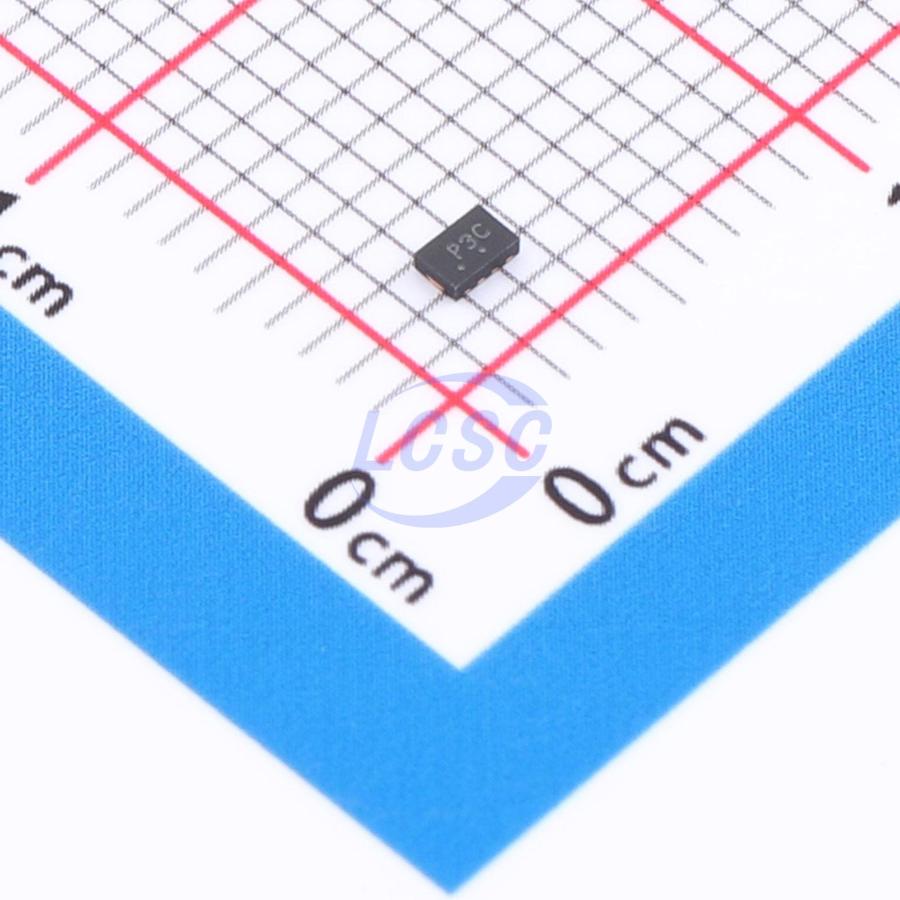

NUP8011MUTAG
6.8V Unidirectional 4.3V UDFN-8(1.2x1.8) TVS Diodes RoHS
ESD DIODE 4.3VWM UDFN-8(1.2x1.8)
- Manufacturer
- onsemi
- Manufacturer part #
- NUP8011MUTAG
- Store part #
- C463193
- Package / case
- UDFN-8(1.2x1.8)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C463193
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.42 | ₹135.42 |
| 10+ | ₹133.48 | ₹1,334.80 |
| 30+ | ₹132.19 | ₹3,965.70 |
| 100+ | ₹130.90 | ₹13,090.00 |
1 × ₹135.42
₹135.42
excl. GST
₹159.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NUP8011MUTAG
₹135.42 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 8
- Voltage - Breakdown
- 6.8V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 4.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
This integrated surge protection device is designed for applications requiring transient overvoltage protection. It is intended for use in sensitive equipment such as computers, printers, business machines, communication systems, and other applications. Its integrated design provides very effective and reliable protection for eight separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Applications
- ESD Protection for Data Lines
- Wireless Phones
- Handheld Products
- Notebook Computers
- LCD Displays
Key features
- Low Clamping Voltage
- UDFN Package, 1.2 x 1.8 mm
- Standoff Voltage: 4.3 V
- Low Leakage Current
- IEC61000−4−2, Level 4 ESD Protection
- Moisture Sensitivity Level 1
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
