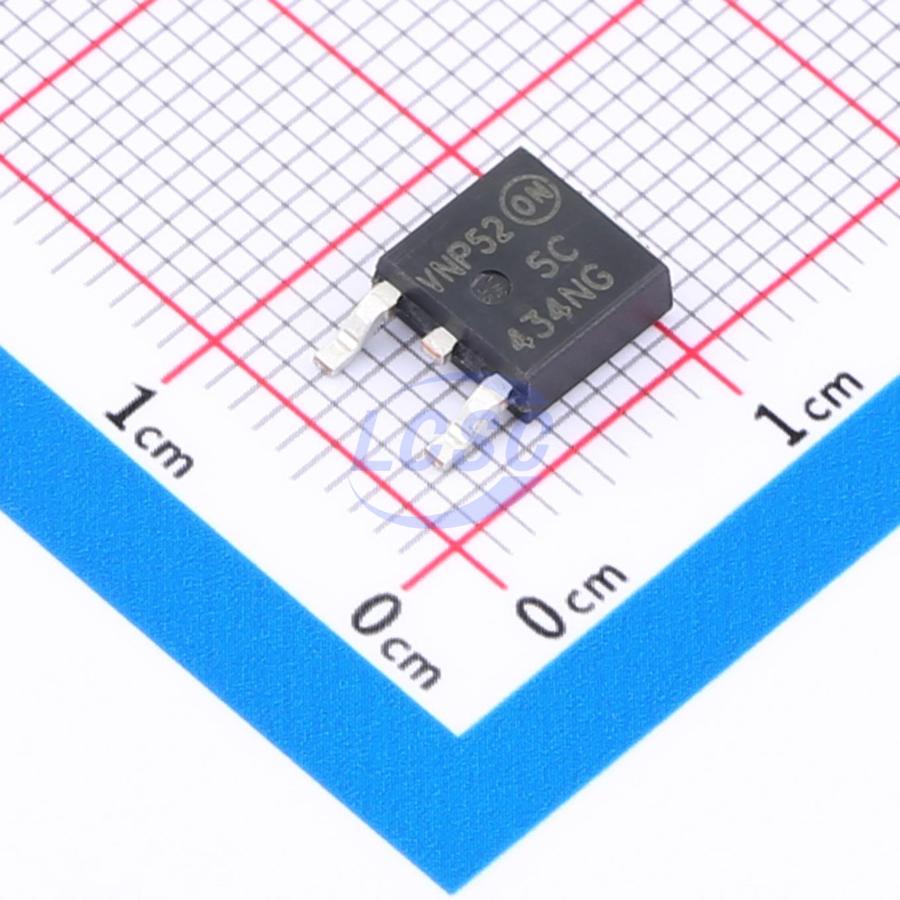

NVD5C434NT4G
N-Channel 40V 163A 117W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 40V 163A DPAK
- Manufacturer
- onsemi
- Manufacturer part #
- NVD5C434NT4G
- Store part #
- C604533
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C604533
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹337.85 | ₹337.85 |
| 10+ | ₹330.46 | ₹3,304.60 |
| 30+ | ₹325.44 | ₹9,763.20 |
| 100+ | ₹320.66 | ₹32,066.00 |
1 × ₹337.85
₹337.85
excl. GST
₹398.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NVD5C434NT4G
₹337.85 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 163A
- Ciss-Input Capacitance
- 5.4nF
- Pd - Power Dissipation
- 117W
- RDS(on)
- 2.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.384 g
Overview
Key features
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HYG025N04NR1D#C19268962HUAYI · TO-252-2L | HUAYI | TO-252-2L | 50 | ₹89.28 · 50 in stock | View |
 | MOT4120D#C52711205MOT · TO-252 | MOT | TO-252 | 50 | ₹46.60 · 50 in stock | View |
 | AGM601AD#C42372662AGMSEMI · PTO-252 | AGMSEMI | PTO-252 | 43 | ₹120.60 · 43 in stock | View |
 | SK240N04#C5160049Shikues · TO-252 | Shikues | TO-252 | 1,755 | ₹69.34 · 1,755 in stock | View |
 | XR190N04#C42456804XNRUSEMI · TO-252-3L | XNRUSEMI | TO-252-3L | 1,430 | ₹46.89 · 1,430 in stock | View |
