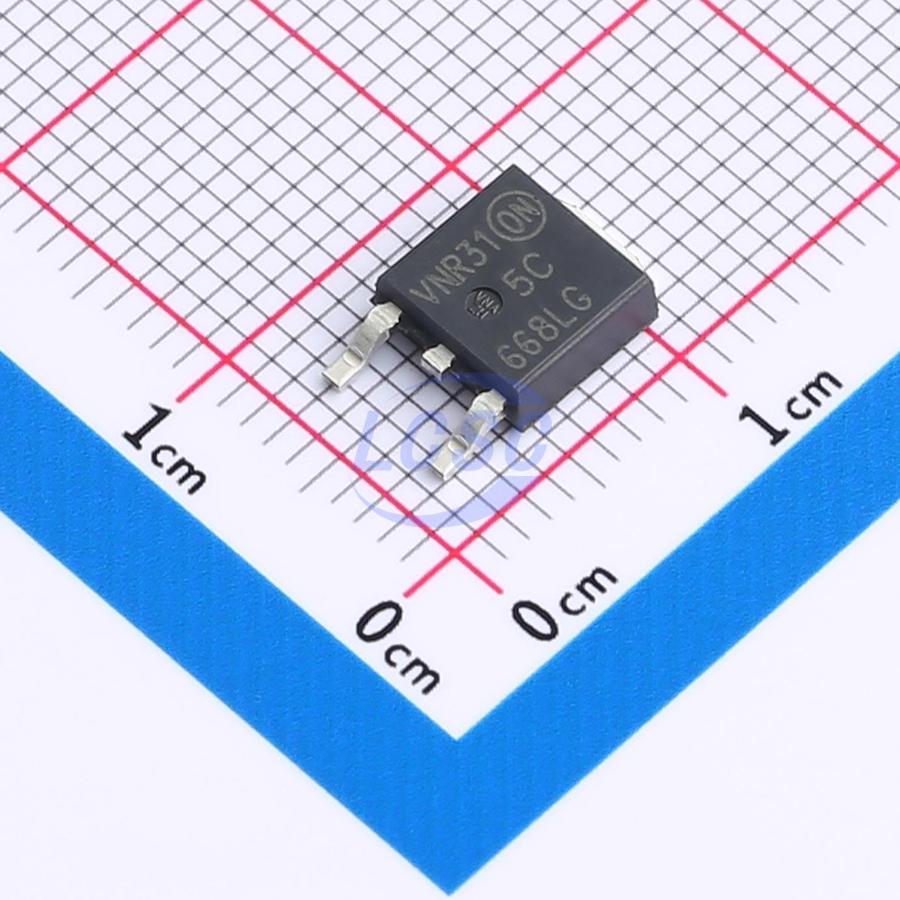

NVD5C668NLT4G
N-Channel 60V 49A 44W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 60V 49A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- NVD5C668NLT4G
- Store part #
- C604538
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
102 in stock
#C604538
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹436.02 | ₹436.02 |
| 10+ | ₹373.58 | ₹3,735.80 |
| 30+ | ₹336.72 | ₹10,101.60 |
| 100+ | ₹299.21 | ₹29,921.00 |
| 500+ | ₹282.08 | ₹1,41,040.00 |
| 1,000+ | ₹274.27 | ₹2,74,270.00 |
1 × ₹436.02
₹436.02
excl. GST
₹514.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NVD5C668NLT4G
₹436.02 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 580pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 44W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 49A
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 8.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.7nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.413 g
Overview
Key features
- Low on-resistance (R<sub>DS(on)</sub>) for minimized conduction losses
- Low gate charge (Q<sub>G</sub>) and capacitance for minimized driving losses
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBE1606#C416256VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 158 | ₹157.74 · 158 in stock | View |
 | HKTD50N06#C5364292Guangdong Hottech · TO-252 | Guangdong Hottech | TO-252 | 1,655 | ₹25.89 · 1,655 in stock | View |
 | YFW50N06AD#C3039970YFW · TO-252 | YFW | TO-252 | 2,450 | ₹29.74 · 2,450 in stock | View |
 | XRS65N06#C42457048XNRUSEMI · TO252-3L | XNRUSEMI | TO252-3L | 305 | ₹30.59 · 305 in stock | View |
 | IPD12CN10NGATMA1-HXY#C51949337HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 97 | ₹139.60 · 97 in stock | View |
