HXY MOSFETDatasheet (PDF)

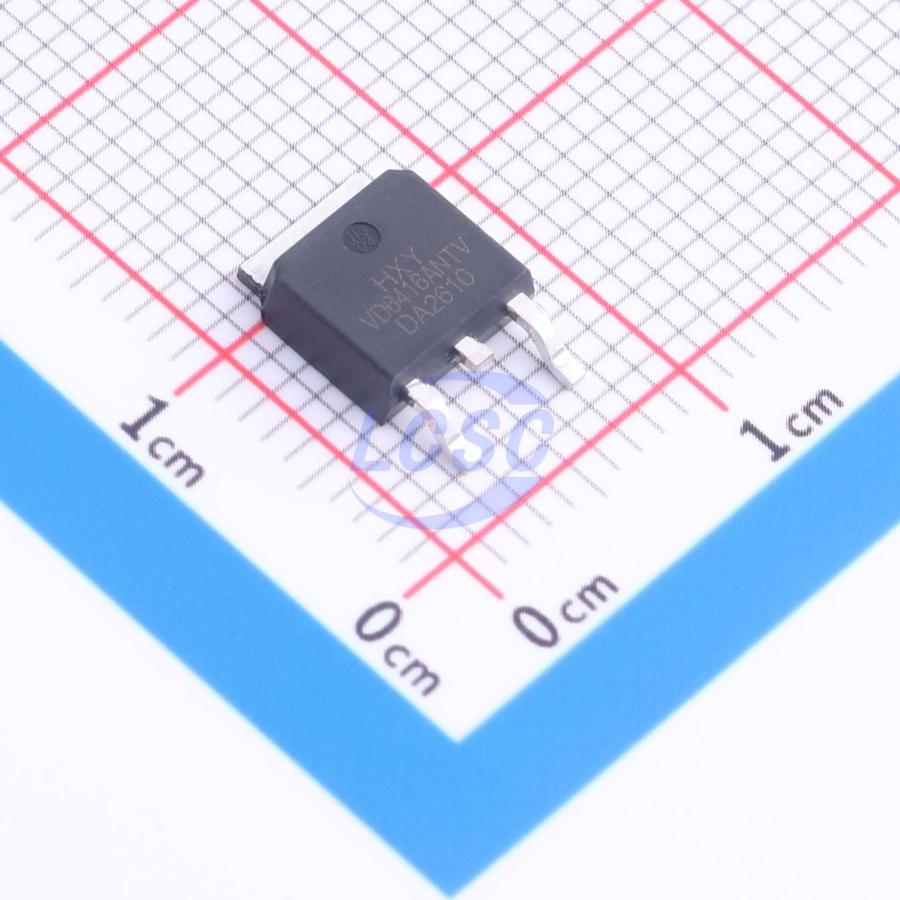

NVD6416ANT4G-VF01-HXY
100V 20A 34.7W 80mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NVD6416ANT4G-VF01-HXY
- Store part #
- C54582713
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C54582713
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.41 | ₹187.05 |
| 50+ | ₹29.64 | ₹1,482.00 |
| 150+ | ₹26.30 | ₹3,945.00 |
| 500+ | ₹22.15 | ₹11,075.00 |
| 2,500+ | ₹20.29 | ₹50,725.00 |
| 5,000+ | ₹19.18 | ₹95,900.00 |
5 × ₹37.41
₹187.05
excl. GST
₹220.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NVD6416ANT4G-VF01-HXY
₹187.05 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.535nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.396 g
Overview
The NVD6416ANT4G-VF01 employs advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage V<sub>DS</sub> = 100V, drain current I<sub>D</sub> = 20A
- On-resistance R<sub>DS(ON)</sub> < 87mΩ at gate-source voltage V<sub>GS</sub> = 10V
