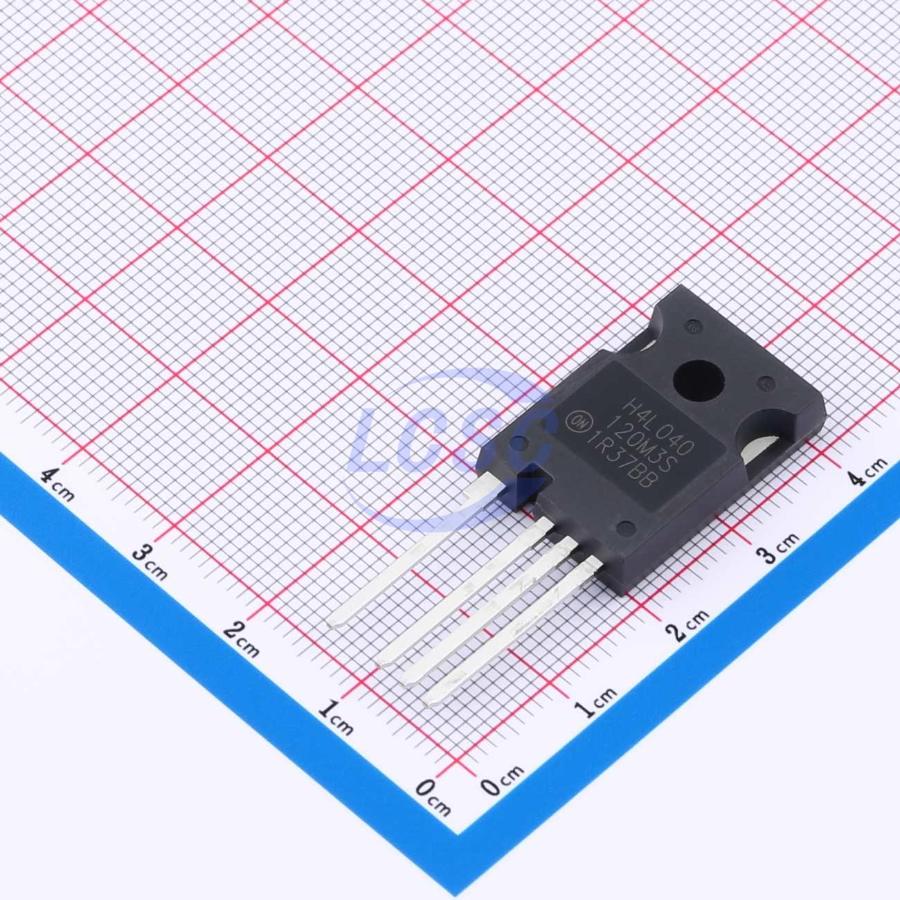

NVH4L040N120M3S
N-Channel 1.2kV 54A 231W Through Hole TO-247-4L
TO-247-4LROHS3 CompliantActive
Silicon Carbide (SiC) MOSFET - EliteSiC 40 mohm, 1200V, M3S, TO-247-4L
- Manufacturer
- onsemi
- Manufacturer part #
- NVH4L040N120M3S
- Store part #
- C19673852
- Package / case
- TO-247-4L
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
141 in stock
#C19673852
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,219.28 | ₹2,219.28 |
| 10+ | ₹2,190.52 | ₹21,905.20 |
| 30+ | ₹2,140.49 | ₹64,214.70 |
| 90+ | ₹2,096.70 | ₹1,88,703.00 |
1 × ₹2,219.28
₹2,219.28
excl. GST
₹2,618.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
NVH4L040N120M3S
₹2,219.28 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Current - Continuous Drain(Id)
- 54A
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 231W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 54mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 75nC
- Gate Threshold Voltage (Vgs(th))
- 4.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 9.02 g
Overview
Applications
- Automotive On Board Charger
- Automotive DC - DC Converter for EV/HEV
Key features
- Typ. RDS(on) = 40 mΩ @ VGS = 18 V
- Ultra Low Gate Charge (QG(tot) = 75 nC)
- High Speed Switching with Low Capacitance (Coss = 80 pF)
- 100% Avalanche Tested
- AEC - Q101 Qualified and PPAP Capable
- This Device is Halide Free and RoHS Compliant with exemption 7a, Pb - Free 2LI (on second level interconnection)
