onsemi

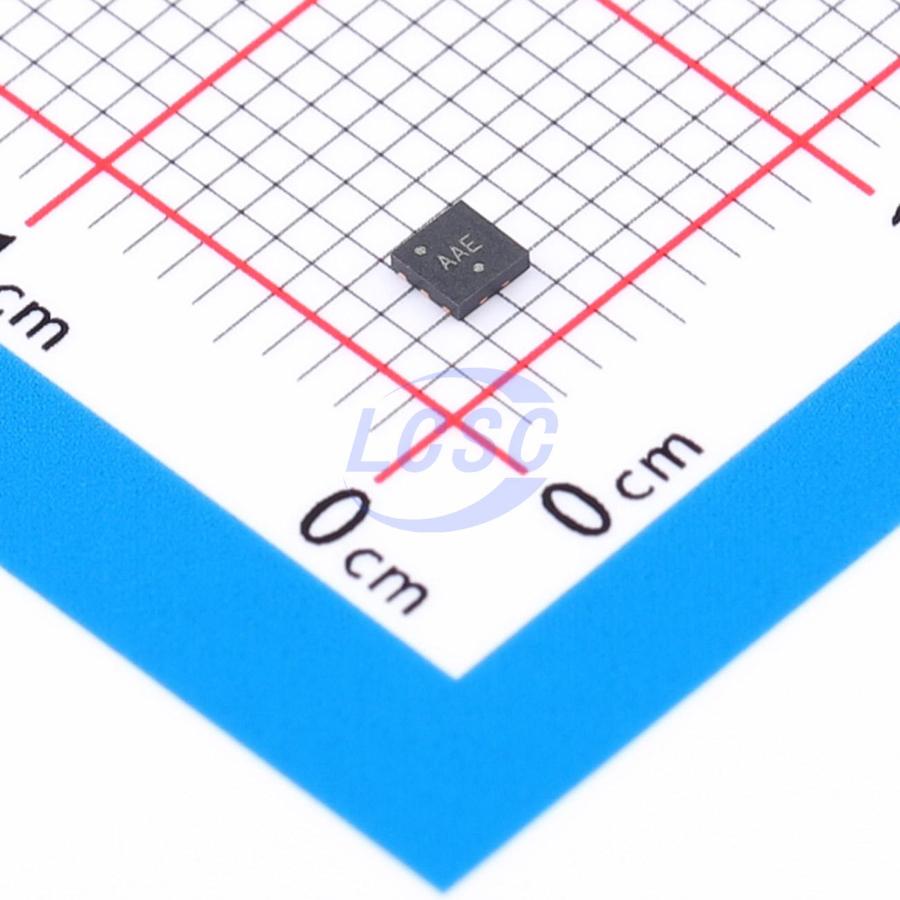

NVLJS053N12MCLTAG

2.3W 120V 4.8A 70mΩ@4.5V 1 N-channel N-Channel UDFN-6(2x2) Single FETs, MOSFETs RoHS

UDFN-6(2x2)ROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: NVLJS053N12MCLTAG
Store part #: C3291405
Package / case: UDFN-6(2x2)
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C3291405

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹129.26	₹129.26
10+	₹126.21	₹1,262.10
30+	₹124.26	₹3,727.80
100+	₹122.30	₹12,230.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 190pF
Ciss-Input Capacitance: 520pF
Pd - Power Dissipation: 2.3W
Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 120V
Current - Continuous Drain(Id): 4.8A
Reverse Transfer Capacitance (Crss): 1.8pF
RDS(on): 70mΩ@4.5V
Number: 1 N-channel
Gate Charge(Qg): 7.8nC@10V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 3V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.036 g

Overview

Applications

Primary DC-DC MOSFET
Synchronous rectifiers in DC-DC and AC-DC
Motor drives

Key features

Shield Gate MOSFET technology
Qrr 50% lower than competing MOSFET suppliers
Reduced switching noise/EMI
Low profile — MicroFET 2x2 mm package with 0.5 mm maximum height
100% tested for unclamped inductive load (UIL)
AEC-Q101 qualified with PPAP capability
Lead-free and RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	DMT12H060LFDF-7#C5711753DIODES · UDFN2020-6	DIODES	UDFN2020-6	19	₹104.62 · 19 in stock	View
