onsemiDatasheet (PDF)

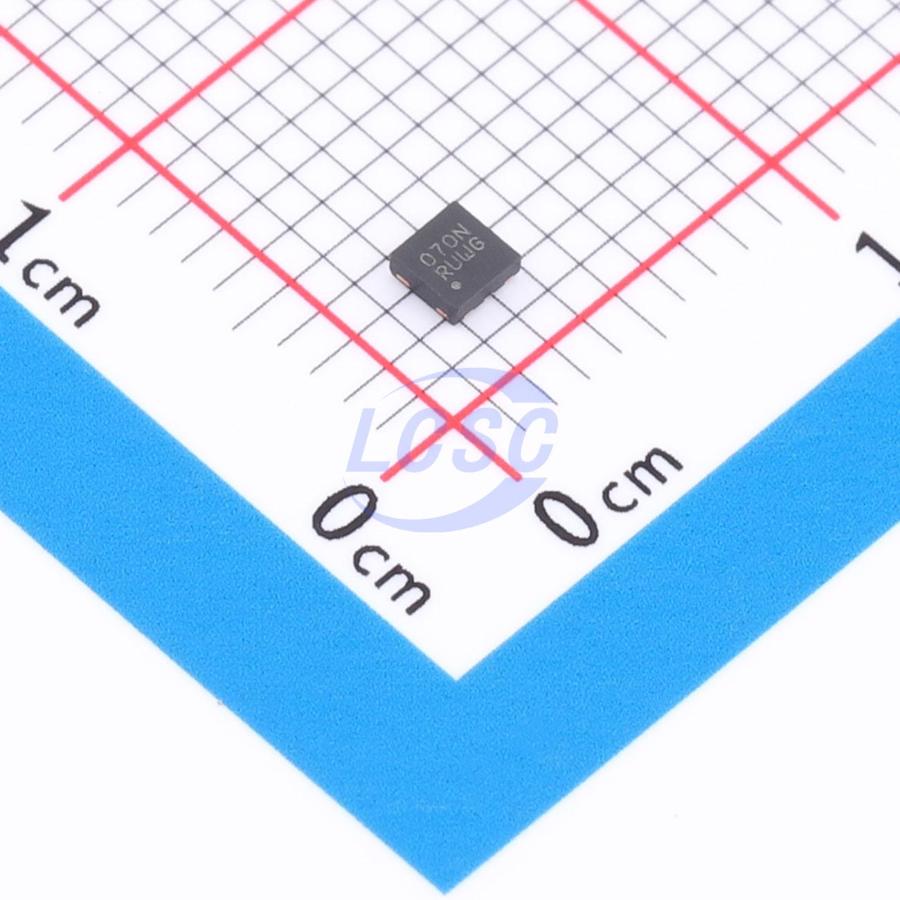

NVLJWS070N06CLTAG
15W 60V 11A 62mΩ@10V 1 N-channel N-Channel WDFNW-6(2.05x2.05) Single FETs, MOSFETs
WDFNW-6(2.05x2.05)RoHSActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVLJWS070N06CLTAG
- Store part #
- C5208096
- Package / case
- WDFNW-6(2.05x2.05)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
132 in stock
#C5208096
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.51 | ₹93.51 |
| 10+ | ₹92.21 | ₹922.10 |
| 30+ | ₹91.35 | ₹2,740.50 |
| 100+ | ₹90.49 | ₹9,049.00 |
1 × ₹93.51
₹93.51
excl. GST
₹110.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVLJWS070N06CLTAG
₹93.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 81pF
- Ciss-Input Capacitance
- 160pF
- Pd - Power Dissipation
- 15W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 11A
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 62mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.077 g
Overview
Key features
- Compact size for space-constrained designs
- Low on-resistance RDS(on) for minimized conduction losses
- Low gate charge QG and capacitance for minimized drive losses
- Solderable flank option for enhanced optical inspection
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVLJWS011N06CLTAG#C5208093onsemi · WDFNW-6(2.05x2.05) | onsemi | WDFNW-6(2.05x2.05) | On request | ₹107.67 · 0 in stock | View |
