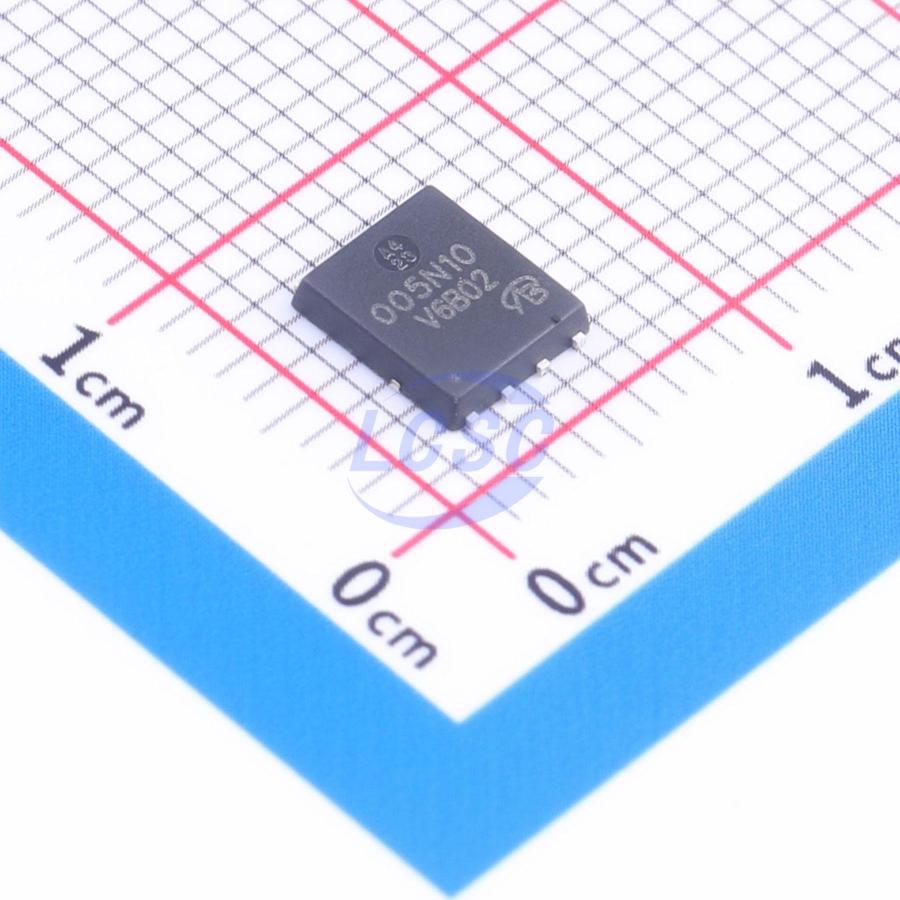

NVMFS005N10MCLT1G-VB
N-Channel 100V 105A 8.3W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 100V 105A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NVMFS005N10MCLT1G-VB
- Store part #
- C47993768
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C47993768
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.36 | ₹164.36 |
| 10+ | ₹135.82 | ₹1,358.20 |
| 30+ | ₹120.38 | ₹3,611.40 |
| 100+ | ₹102.56 | ₹10,256.00 |
| 500+ | ₹94.85 | ₹47,425.00 |
| 1,000+ | ₹91.19 | ₹91,190.00 |
1 × ₹164.36
₹164.36
excl. GST
₹193.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVMFS005N10MCLT1G-VB
₹164.36 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 105A
- Ciss-Input Capacitance
- 11nF
- Pd - Power Dissipation
- 8.3W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.146 g
Overview
Applications
- Power switch
- DC/DC converter
Key features
- Junction temperature 175°C
- SGT technology power MOSFET
- Material classification: RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STL120N10F8-VB#C47993730VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 17 | ₹186.45 · 17 in stock | View |
 | NTMFS6B03NT3G-VB#C47993770VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹229.67 · 10 in stock | View |
 | FDMS86150A-VB#C47993841VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 1 | ₹194.40 · 1 in stock | View |
 | BSC050N10NS5-VB#C47993869VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 5 | ₹186.45 · 5 in stock | View |
 | AONS66909-VB#C47993875VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 6 | ₹194.40 · 6 in stock | View |
