HXY MOSFETDatasheet (PDF)

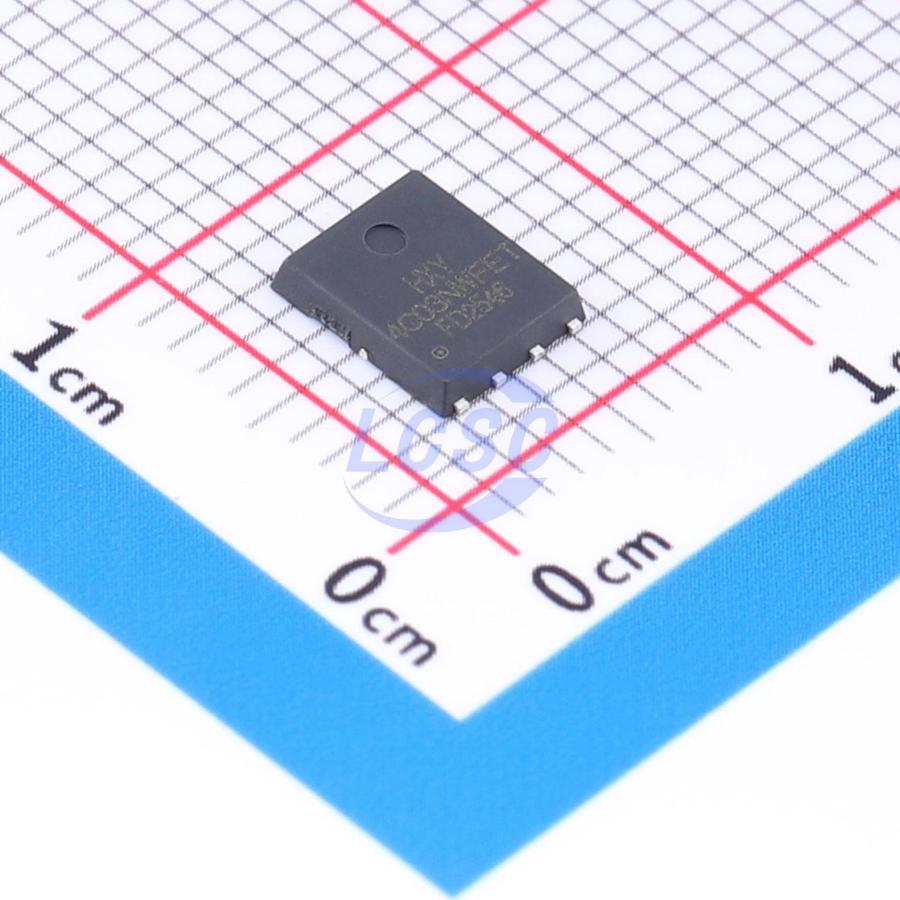

NVMFS4C03NWFET1G-HXY
187W 30V 150A 2mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NVMFS4C03NWFET1G-HXY
- Store part #
- C53263056
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98 in stock
#C53263056
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.41 | ₹113.41 |
| 10+ | ₹93.01 | ₹930.10 |
| 30+ | ₹82.91 | ₹2,487.30 |
| 100+ | ₹72.82 | ₹7,282.00 |
| 500+ | ₹66.80 | ₹33,400.00 |
| 1,000+ | ₹63.58 | ₹63,580.00 |
1 × ₹113.41
₹113.41
excl. GST
₹133.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVMFS4C03NWFET1G-HXY
₹113.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 340pF
- Ciss-Input Capacitance
- 4.345nF
- Pd - Power Dissipation
- 187W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 150A
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56.9nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
