onsemiDatasheet (PDF)

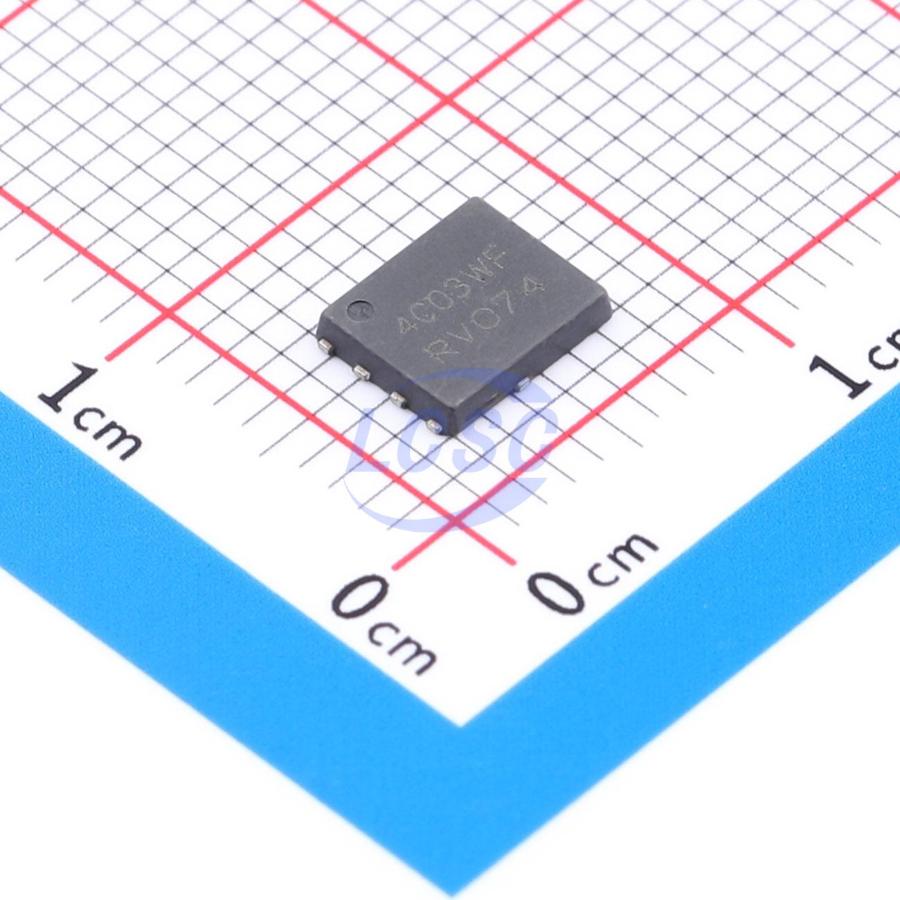

NVMFS4C03NWFT1G
77W 30V 159A 1.4mΩ@10V 1 N-channel N-Channel SO-8-FL-5.8mm Single FETs, MOSFETs RoHS
SO-8-FL-5.8mmROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS4C03NWFT1G
- Store part #
- C900411
- Package / case
- SO-8-FL-5.8mm
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C900411
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹338.57 | ₹338.57 |
| 10+ | ₹330.96 | ₹3,309.60 |
| 30+ | ₹325.74 | ₹9,772.20 |
| 100+ | ₹320.51 | ₹32,051.00 |
1 × ₹338.57
₹338.57
excl. GST
₹399.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS4C03NWFT1G
₹338.57 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.673nF
- Ciss-Input Capacitance
- 3.071nF
- Pd - Power Dissipation
- 77W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 159A
- Reverse Transfer Capacitance (Crss)
- 67pF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20.8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.218 g
Overview
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- NVMFS4C03NWF − Wettable Flanks Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
